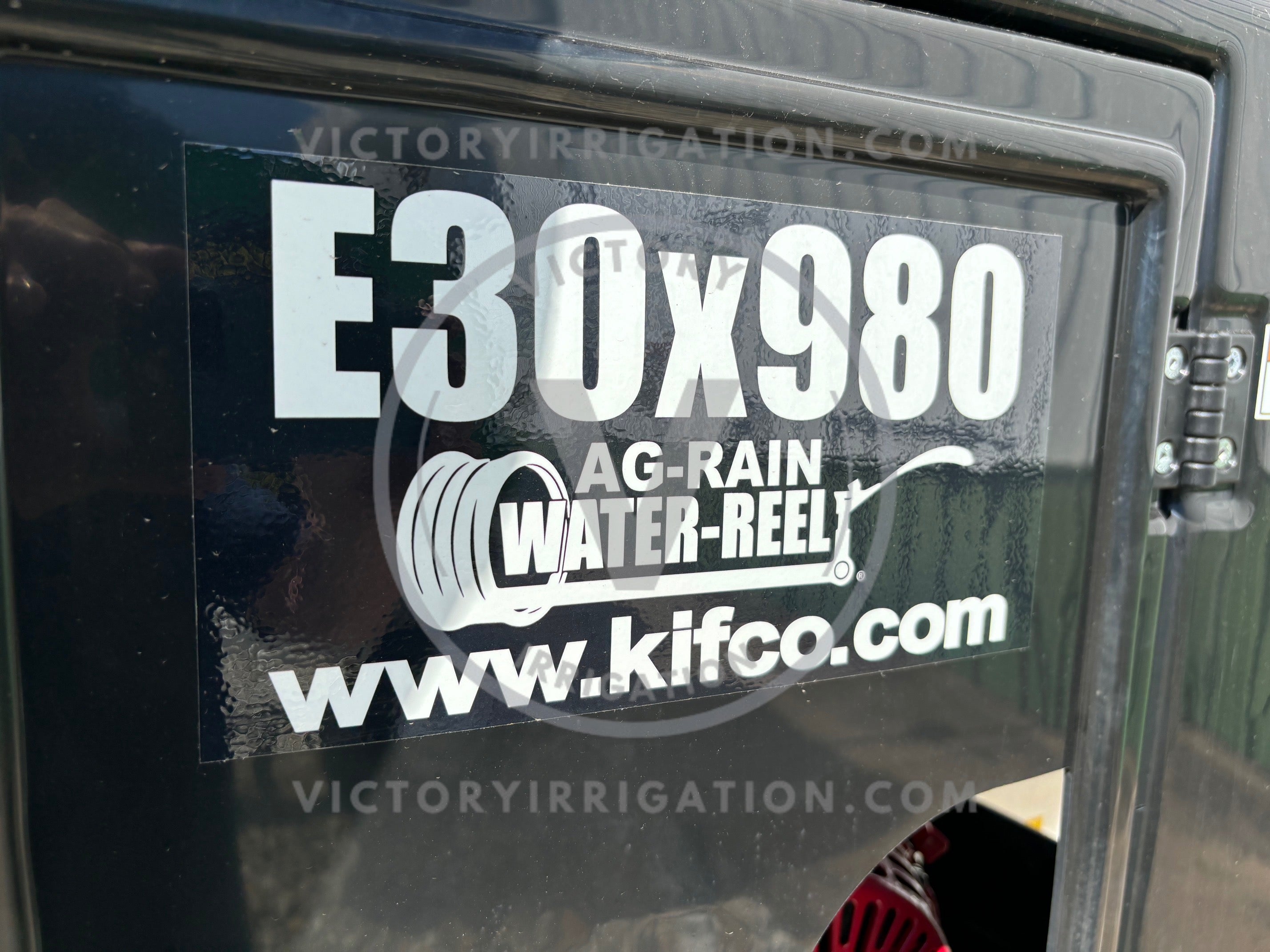

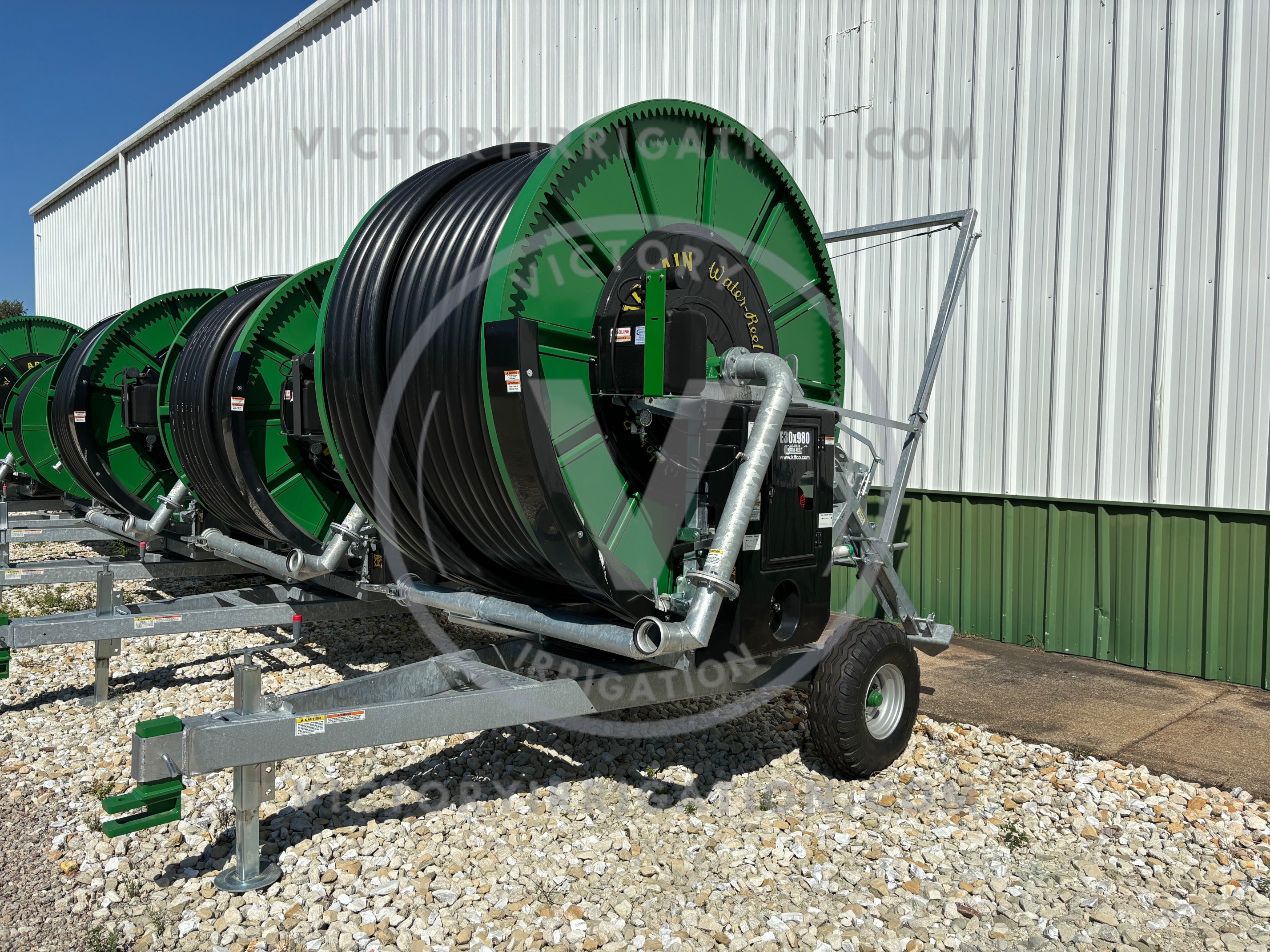

Kifco Ag-Rain Model E30/980 Reel

Contact us for Best Price and Further Discounts!

Gas Engine Driven Water-Reel  with 3.0" ID x 980' MDPE Tube.

Portable, Simple, Reliable irrigation, waste water and slurry waste disposal or dust    suppression.

The UV resistant MDPE Tube is extremely durable and carries a 5 year pro-rated        warranty against manufacturing defects.

Rugged construction proven by over 40 years of production and over 35,000 Kifco  Water-Reels sold.

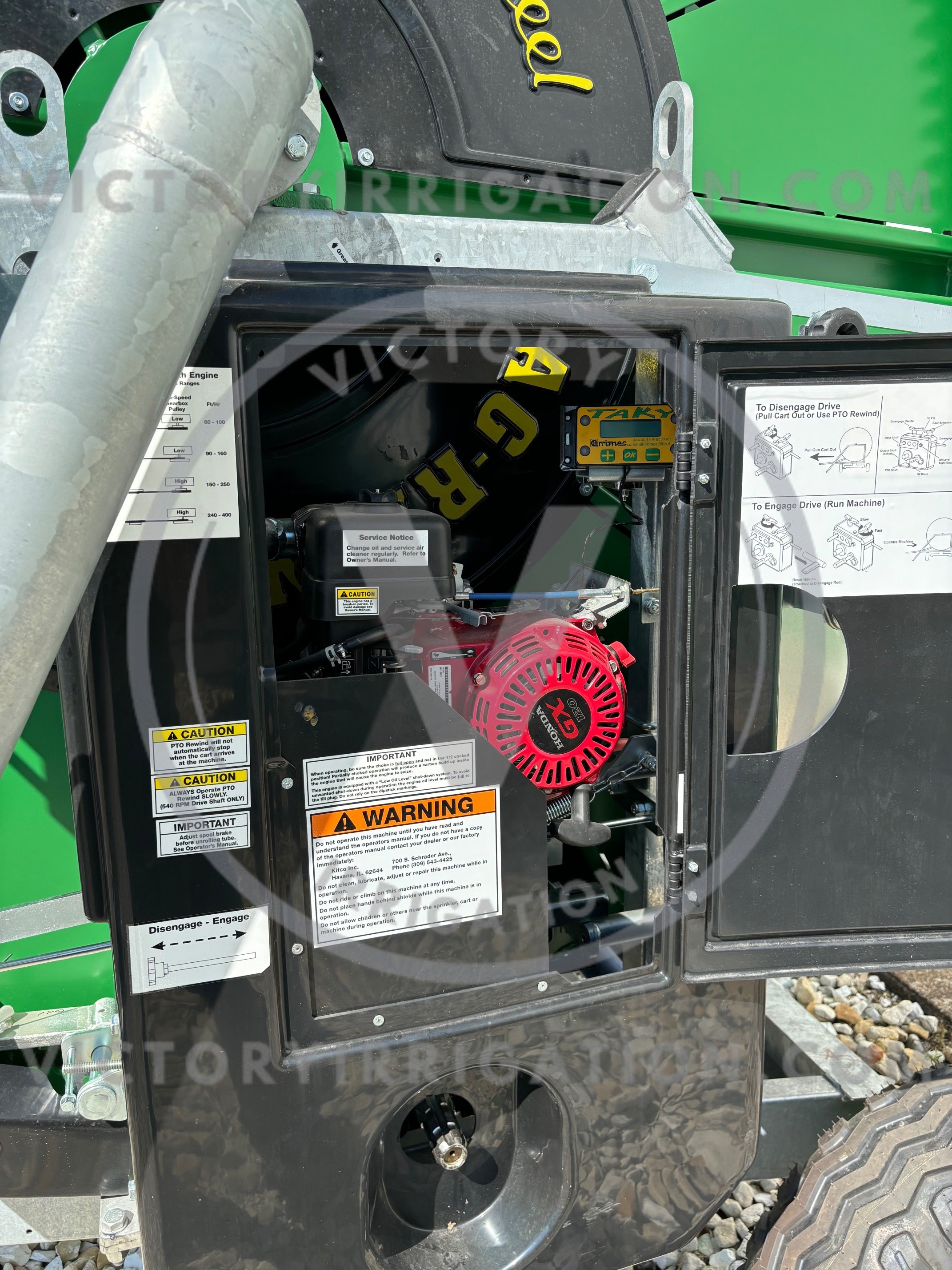

Efficient 4Hp gas powered Honda engine for high travel speeds, waste water  applications and low water pressure.

Six gallon fuel cell

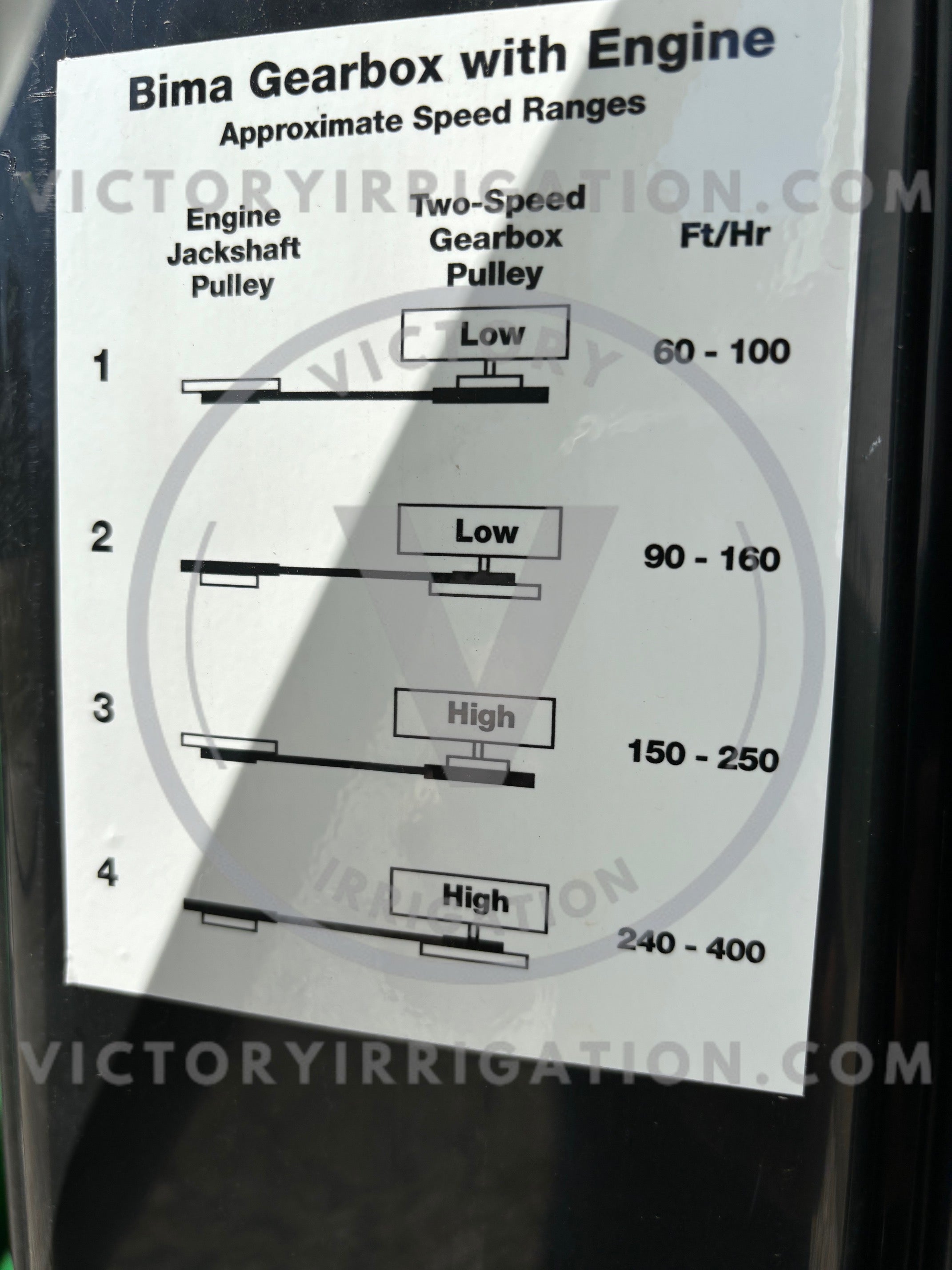

A two speed gearbox and three pulley settings provide six speed operation.

Taky (Electronic Tachometer) which measures retraction speed, length of run, tube  remaining and time to end of run.

Liquid filled inlet pressure gauge.

30 x 4 supply hose with 4 male ring lock supply end.

Tube mis-wrap safety shutoff.

Automatic shutoff of drive mechanism.

Adjustable width guncart which allows for offset gun operation and added width for stability.

Cross-Over Pipe allowing for water inlet on both sides of the reel.

Hand crank operated guncart lift.

Heavy duty hand crank stabilizer legs.

Drawbar hitch for easy towing.

Single axle galvanized heavy duty chassis.

Adjustable width axle on chassis.

Drawbar hitch for easy towing.

Hand operated jack.

Ball bearing turntable.

Chain operated levelwind system.

Speed compensation for consistent retraction speeds for entire length of run.

Specifications

• Tube Inner Diameter/Length: 3.0" x 980'
• Irrigated Width: 172' - 243'
• Irrigated Length: 1,066' - 1,101'
• Irrigated Area Per Run (Acres): 4.2 - 6.2
• Drive System: Turbine or Engine (Learn More)
• GPM Range: 100 - 275
• Hours Per Full Run: 3.3 - 32 (Turbine) / 2.4 - 16 (Engine)
• Inlet PSI Range: 71 - 144 (Turbine) / 61 - 134 (Engine)
• Chassis Size: ST4

View E30x980 Spec Sheet

Performance Charts
