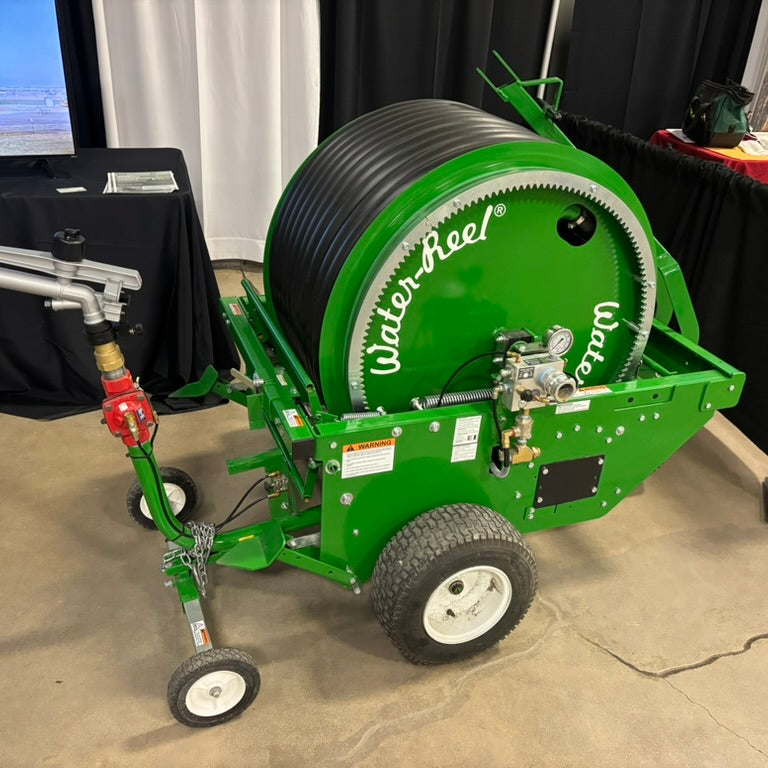

Versatile B-Series Water-Reels for arenas, sports fields, parks, pastures and synthetic turf, irrigating up to 30 acres with your choice of drive: T-Models (water-powered turbine), B-Models (simple bellows drive), gas-powered engine driveor E-Models.

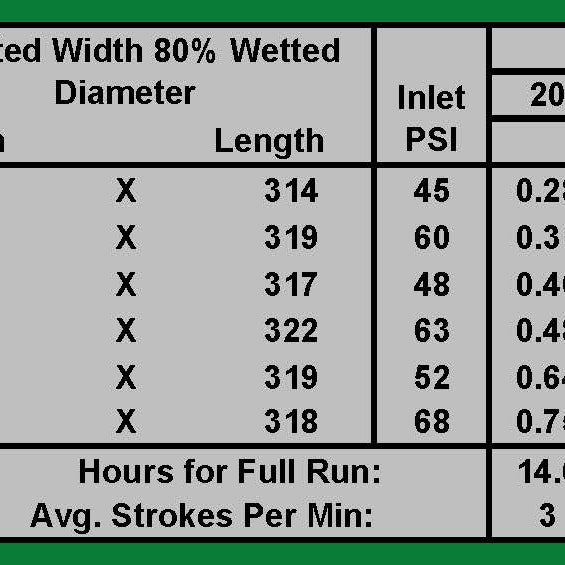

Tube Inner Diameter/Length:
1.1" x 280'
Irrigated Width:
68 - 118'
Irrigated Length:
314 - 339'
Irrigated Area Per Run (Acres):
0.5 - 0.9
Drive System:
Bellows
GPM Range:
4 - 27
Inlet PSI Range:
45 - 103
Hours Per Full Run:
2.3 - 14
Sprinkler Included:
Sime K1 or Sime Silver

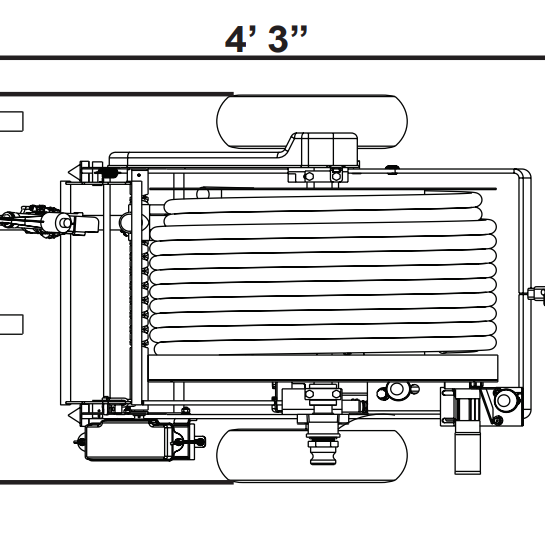

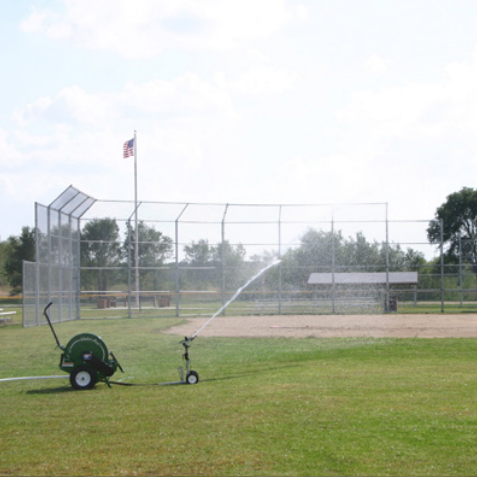

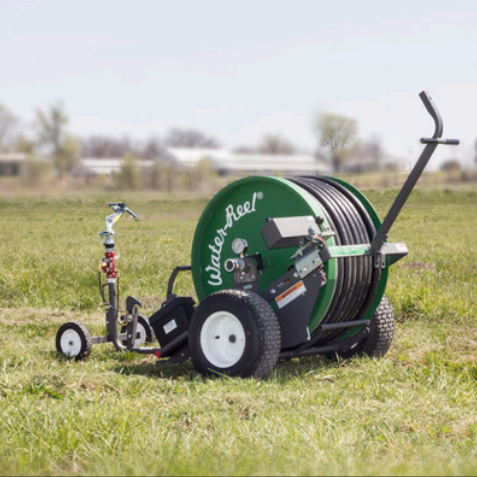

Tube Inner Diameter/Length: 1.1"x280'
Irrigation Width: 58 - 110'
Irrigated Length: 309 - 335'
Irrigated Area Per Run (Acres): 0.4 - 0.7

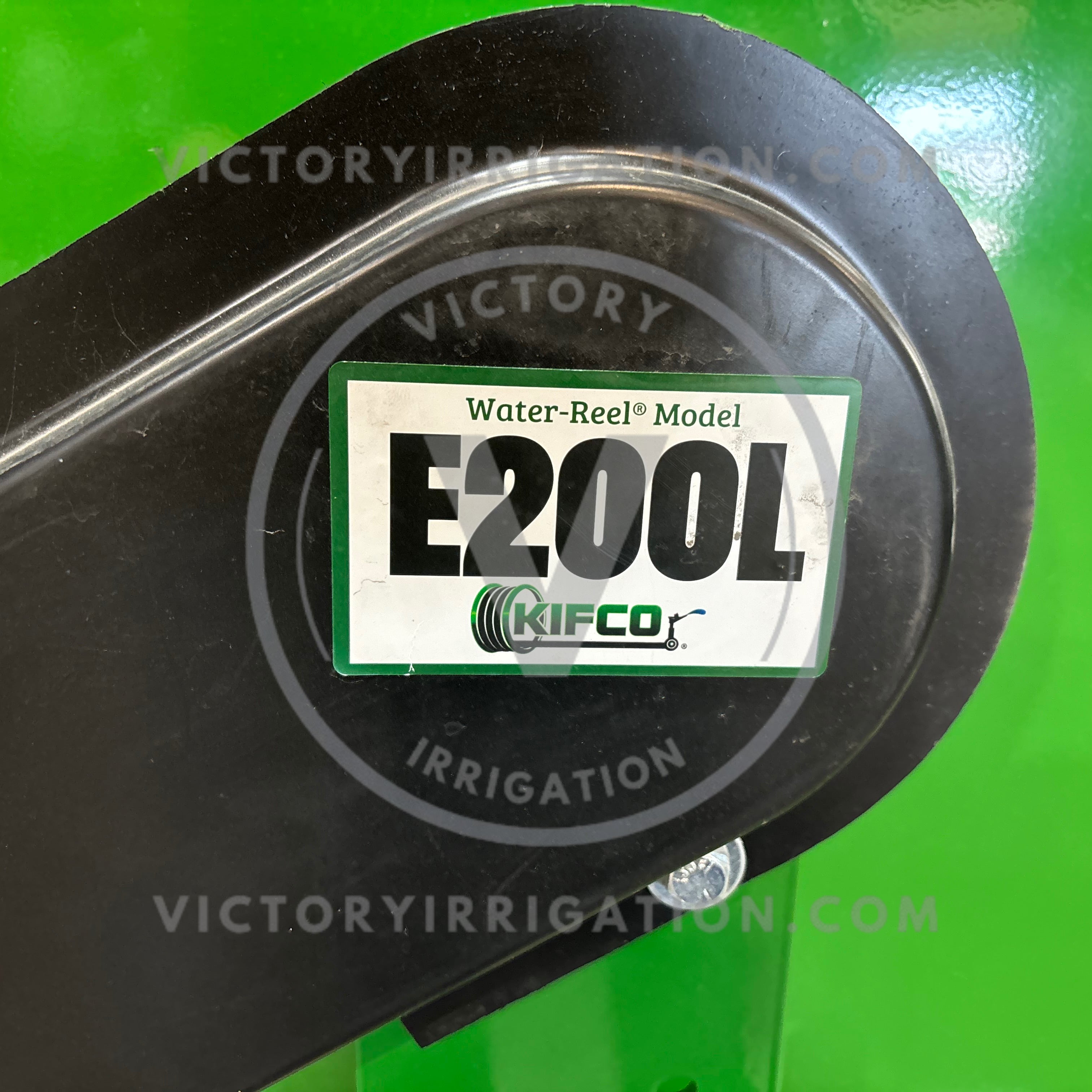

Drive System: Electric Motor
GPM Range: 3 - 26
Inlet PSI Range: 23 - 100
Hours Per Full Run: 1.80 - 9.3
Sprinkler Included: SIME K1 or SIME Silver

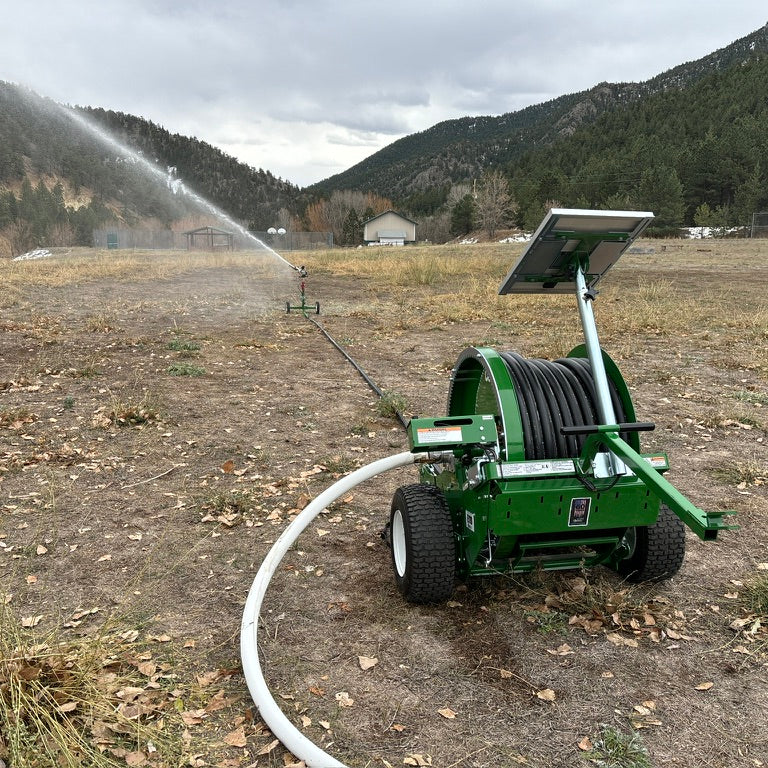

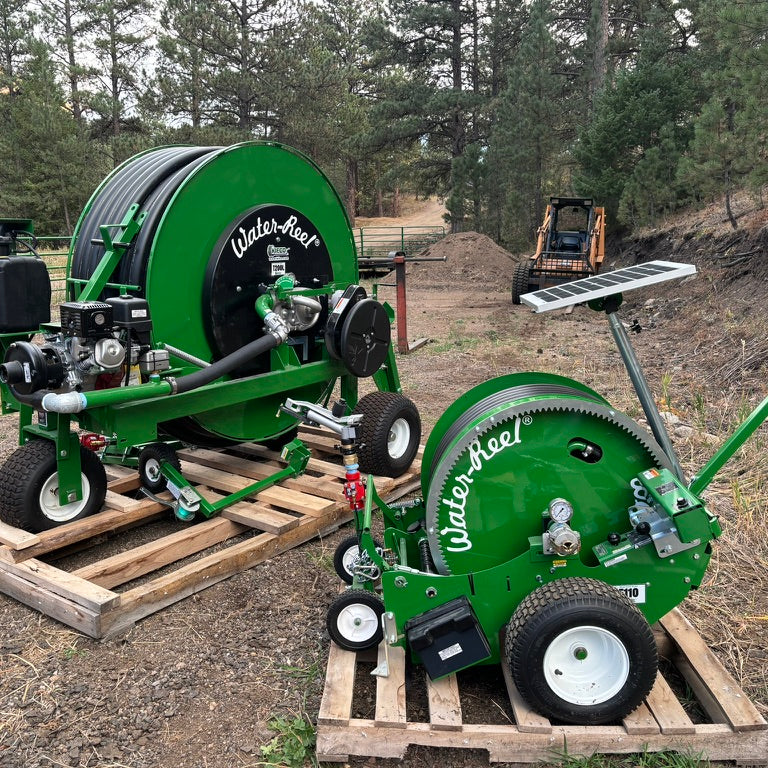

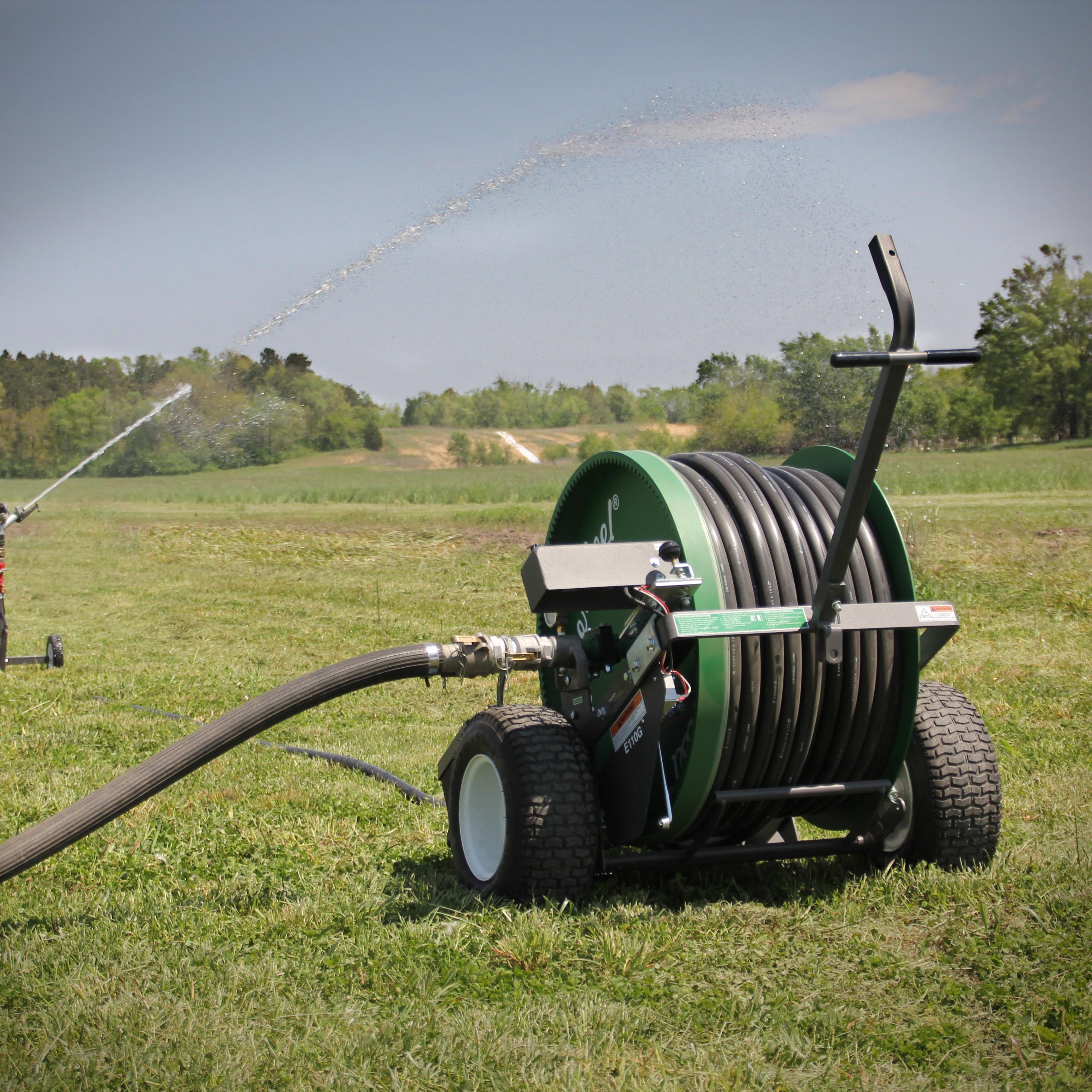

Optional Solar Panel: Kifco Model E110 can be equipped with a highly efficient solar panel which eliminates the need for an electrical charge.

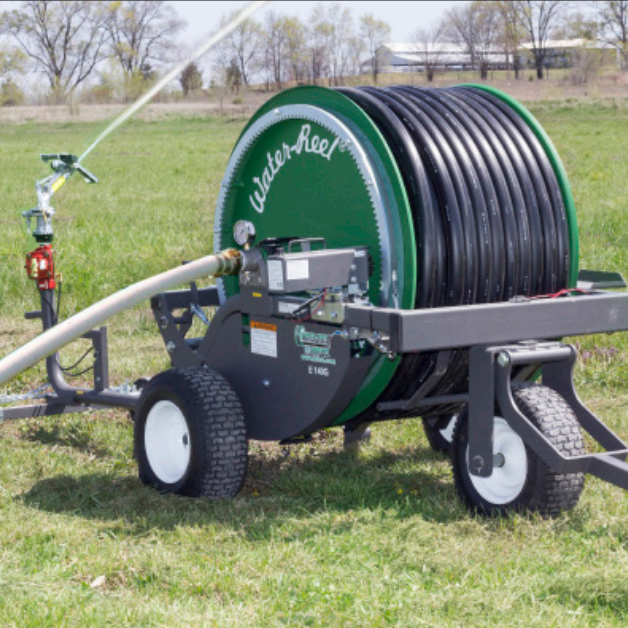

Tube Inner Diameter/Length: 1.4"x350'
Irrigated Width: 100 - 198'
Irrigated Length: 400 - 449'
Irrigated Area Per Run (Acres): 0.2 - 1.5
Drive System: Bellows
GPM Range: 18 - 80
Inlet PSI Range: 47 - 149
Hours Per Full Run: 3.7 - 10
Sprinkler Options: Sime K1, Sime Hidra, Neslon SR75 Big Gun Sprinkler, Komet Twinmax

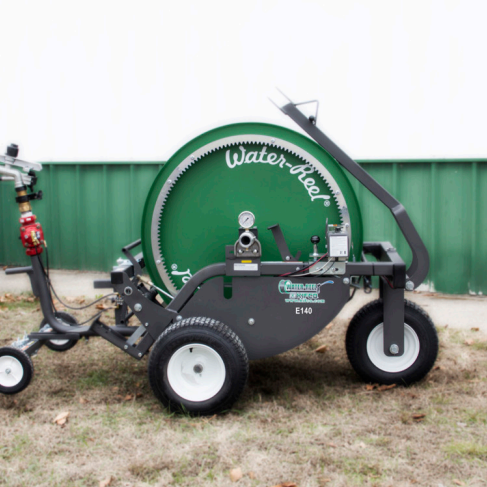

Tube Inner Diameter/Length: 1.4"x350'
Irrigation Width: 82 - 189'
Irrigated Length: 391 - 444'
Irrigated Area Per Run (Acres): 0.4 - 2.0
Drive System: Electric Motor
Recommended Battery: Required battery is not included. 12 Volt Deep Cycle Battery Recommended.
GPM Range: 13 - 80
Inlet PSI Range: 25 - 145
Hours Per Full Run: 2.1 - 11.7
Sprinkler Options: Sime K1, Sime Hidra, Nelson SR75, or Komet Twinmax

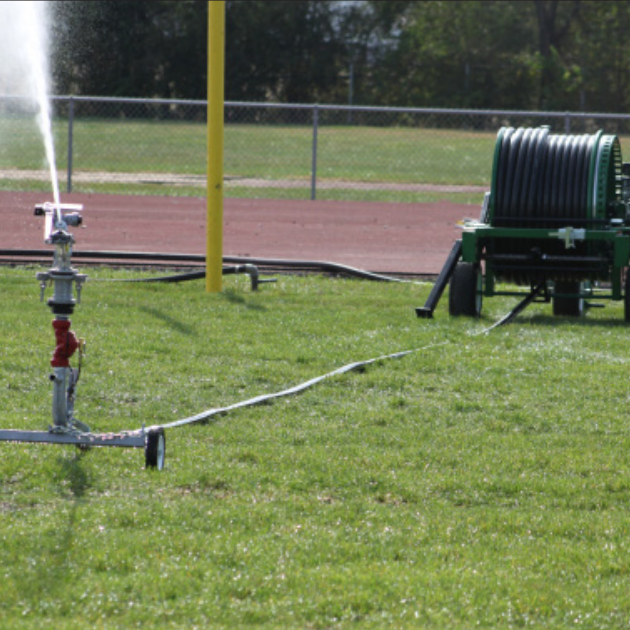

Optional Solar Panel: Kifco Model E140 can be equipped with a highly efficient solar panel which eliminates the need for an electrical charge.
Tube Inner Diameter/Length: 1.8"x380'
Irrigated Width: 105 - 221'
Irrigated Length: 432 - 490'
Irrigated Area Per Run (Acres): 1.1 - 2.5

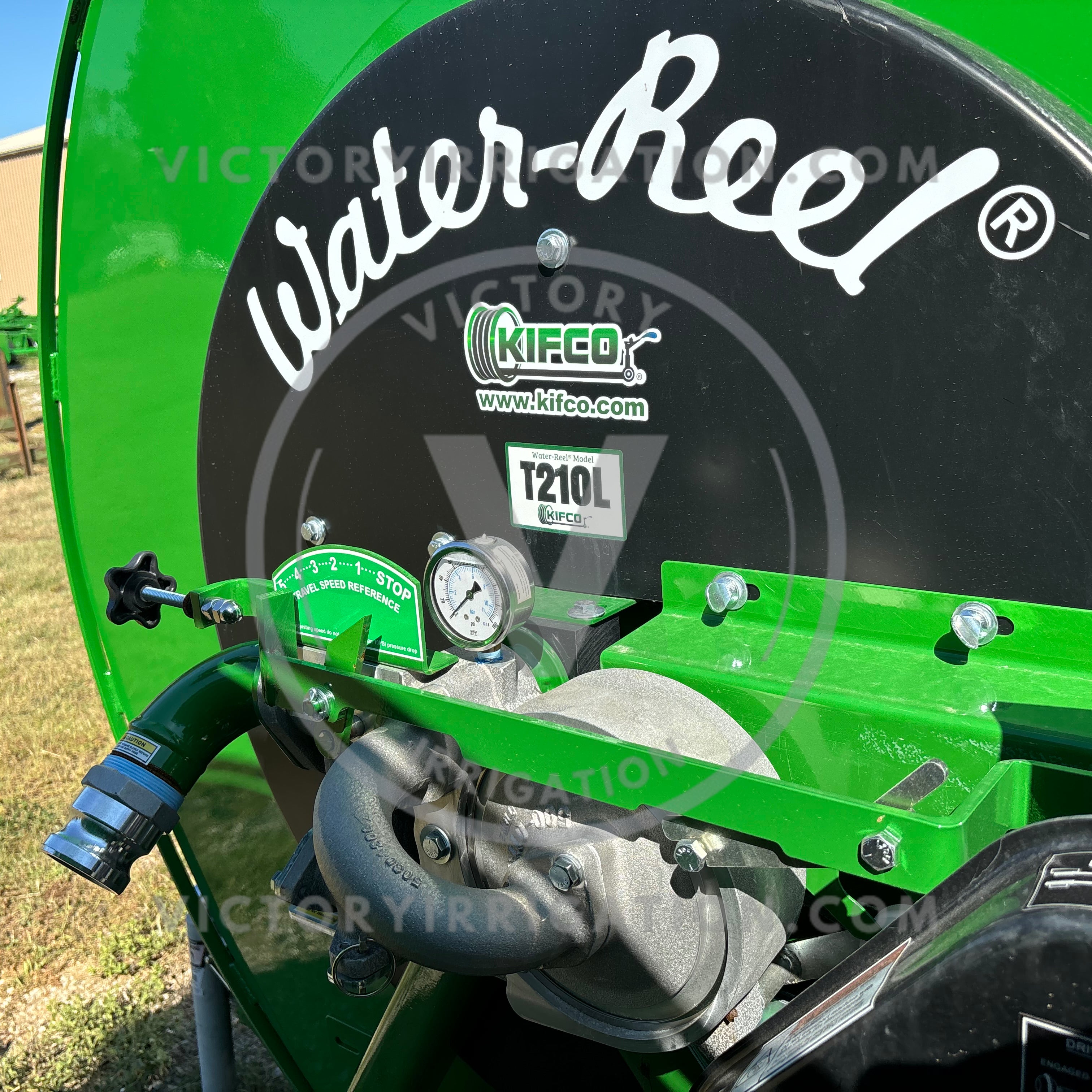

Drive System: Turbine
GPM Range: 26 - 120
Inlet PSI Range: 46 - 150
Hours Per Full Run: 3 - 20
Tube Inner Diameter/Length: 1.9"x320'
Irrigated Width: 105 - 238'
Irrigated Length: 372 - 476'
Irrigated Area Per Run (Acres): 1.1 - 2.4
Drive System: Turbine
GPM Range: 26 - 148
Inlet PSI Range: 43 - 150
Hours Per Full Run: 2.6 - 17.7
Tube Inner Diameter/Length: 1.8"x380'
Irrigated Width: 97 - 130'
Irrigated Length: 428 - 477'
Irrigated Area Per Run (Acres): 1.1 - 2.5
Drive System: Engine
GPM Range: 46 - 130
Inlet PSI Range: 42 - 150
Hours Per Full Run: 0.5 - 1.5
Tube Inner Diameter/Length: 1.8"x380'
Irrigated Width: 105 - 221'
Irrigated Length: 432 - 490'
Irrigated Area Per Run (Acres): 1.1 - 2.5
Drive System: Engine
GPM Range: 26 - 120
Inlet PSI Range: 36 - 140
Hours Per Full Run: 5.5 - 11
Tube Inner Diameter/Length: 2.1"x400'
Irrigated Width: 105 - 235'
Irrigated Length: 452 - 518'
Irrigated Area Per Run (Acres): 1.6 - 2.8
Drive System: Turbine
GPM Range: 40 - 138
Inlet PSI Range: 44 - 141
Hours Per Full Run: 3.4 - 22
Tube Inner Diameter/Length: 1.9"x580'
Irrigated Width: 108 - 211'
Irrigated Length: 634 - 685'
Irrigated Area Per Run (Acres): 2.3 - 3.2
Drive System: Engine
GPM Range: 36 - 115
Inlet PSI Range: 51 - 138
Hours Per Full Run: 8.4 - 16.8
Tube Inner Diameter/Length: 1.9"x320'
Irrigated Width: 105 - 238'
Irrigated Length: 372 - 476'
Irrigated Area Per Run (Acres): 1.1 - 2.4
Drive System: Engine
GPM Range: 26 - 148
Inlet PSI Range: 33 - 140
Hours Per Full Run: 4.6 - 9.3
Tube Inner Diameter/Length: 1.9"x580'
Irrigated Width: 92 - 182'
Irrigated Length: 626 - 671'
Irrigated Area Per Run (Acres): 2.3 - 3.2
Drive System: Engine
GPM Range: 33 - 150
Inlet PSI Range: 33 - 1150
Hours Per Full Run: 0.5 - 1.5
Tube Inner Diameter/Length: 1.9"x580'
Irrigated Width: 108 - 211'
Irrigated Length: 634 - 685'
Irrigated Area Per Run (Acres): 2.3 - 3.2
Drive System: Engine
GPM Range: 36 - 115
Inlet PSI Range: 51 - 138
Hours Per Full Run: 8.4 - 16.8
Tube Inner Diameter/Length: 2.1"x400'
Irrigated Width: 97 - 203'
Irrigated Length: 448 - 502'
Irrigated Area Per Run (Acres): 1.6 - 2.8
Drive System: Engine
GPM Range: 46 - 184
Inlet PSI Range: 35 - 150
Hours Per Full Run: 0.5 - 1.5
Tube Inner Diameter/Length: 2.1"x400'
Irrigated Width: 105 - 235'
Irrigated Length: 452 - 518'
Irrigated Area Per Run (Acres): 1.6 - 2.8
Drive System: Engine
GPM Range: 40 - 138
Inlet PSI Range: 34 - 131
Hours Per Full Run: 5.8 - 11.6
Tube Inner Diameter/Length: 2.1"x850'
Irrigated Width:: 142' - 210'
Irrigated Length: 921' - 955'
GPM Range: 51 - 123
Inlet PSI Range: 62 - 148
Hours Per Full Run: 7.3 - 48
Drive System: Turbine

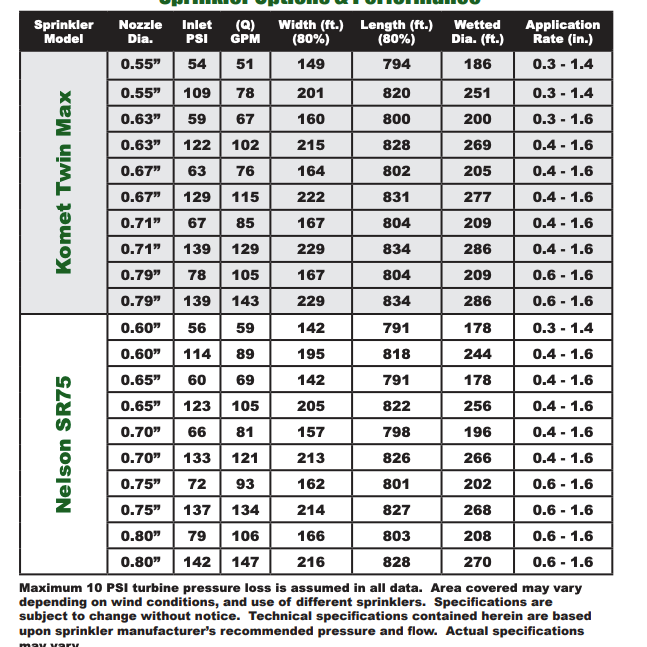

Tube Inner Diameter/Length: 2.3"x720'
Irrigated Width: 142' - 229'
Irrigated Length: 791' - 834'
GPM Range: 51 - 147
Inlet PSI Range: 54 - 142
Hours Per Full Run: 6 - 34
Drive System: Turbine
Tube Inner Diameter/Length: 2.1"x850'
Irrigated Width:: 142' - 210'
Irrigated Length: 921' - 955'
GPM Range: 51 - 123
Inlet PSI Range: 52 - 138
Hours Per Full Run: 11.6 - 24
Drive System: Engine
Tube Inner Diameter/Length: 2.3"x720'
Irrigated Width: 142' - 229'
Irrigated Length: 791' - 834'
GPM Range: 51 - 147
Inlet PSI Range: 44 - 132 (Engine)
Hours Per Full Run: 9.6 - 27.5 (Engine)
Drive System: Engine
Tube Inner Diameter/Length: 1.9"x580'
Irrigated Width: 136 - 186'
Irrigated Length: 648 - 673'
Irrigated Area Per Run (Acres): 2.3 - 3.2
Drive System: Turbine ()
GPM Range: 62 - 107
Inlet PSI Range: 55 - 140
Hours Per Full Run: 4.6 - 27
