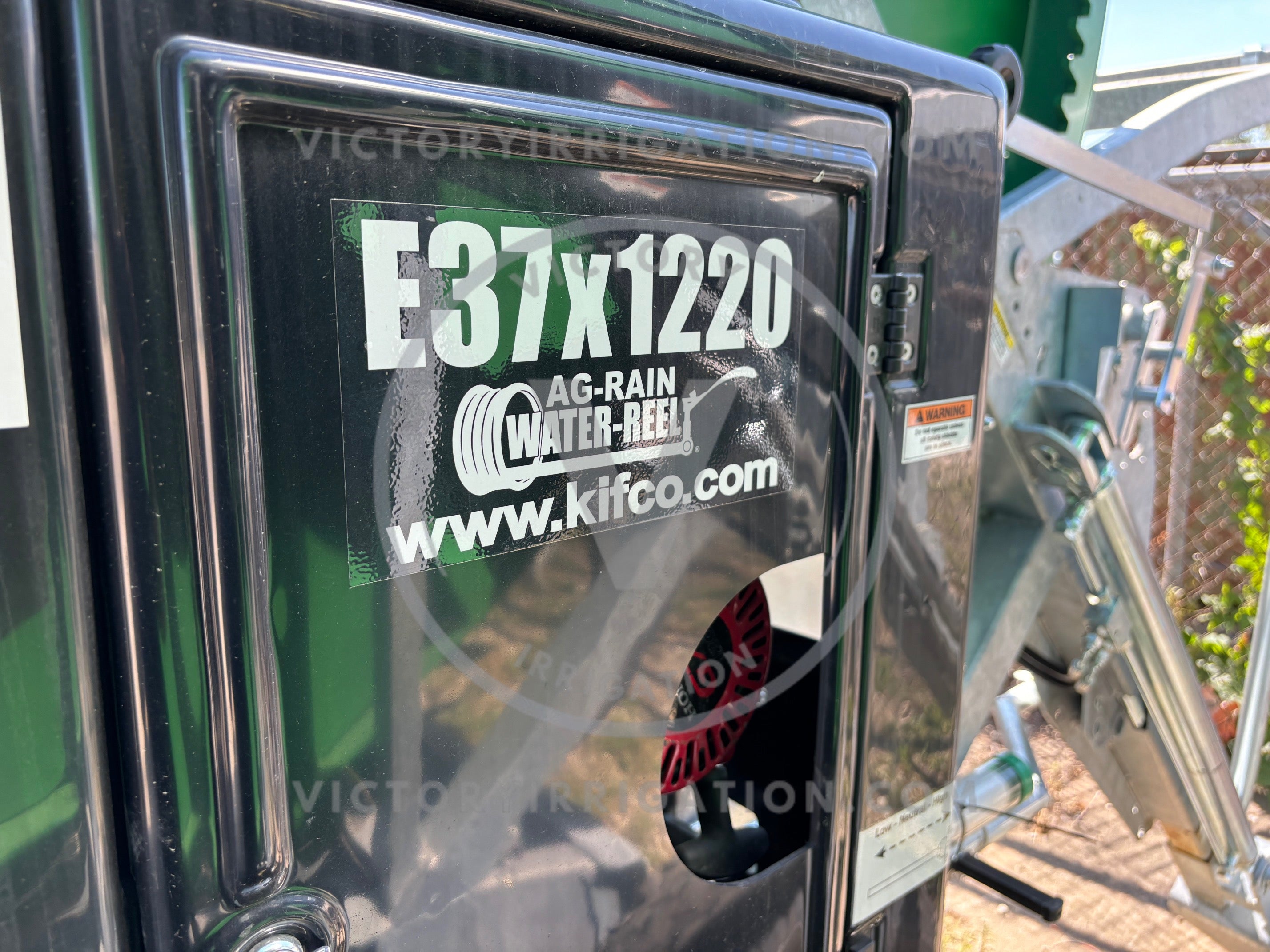

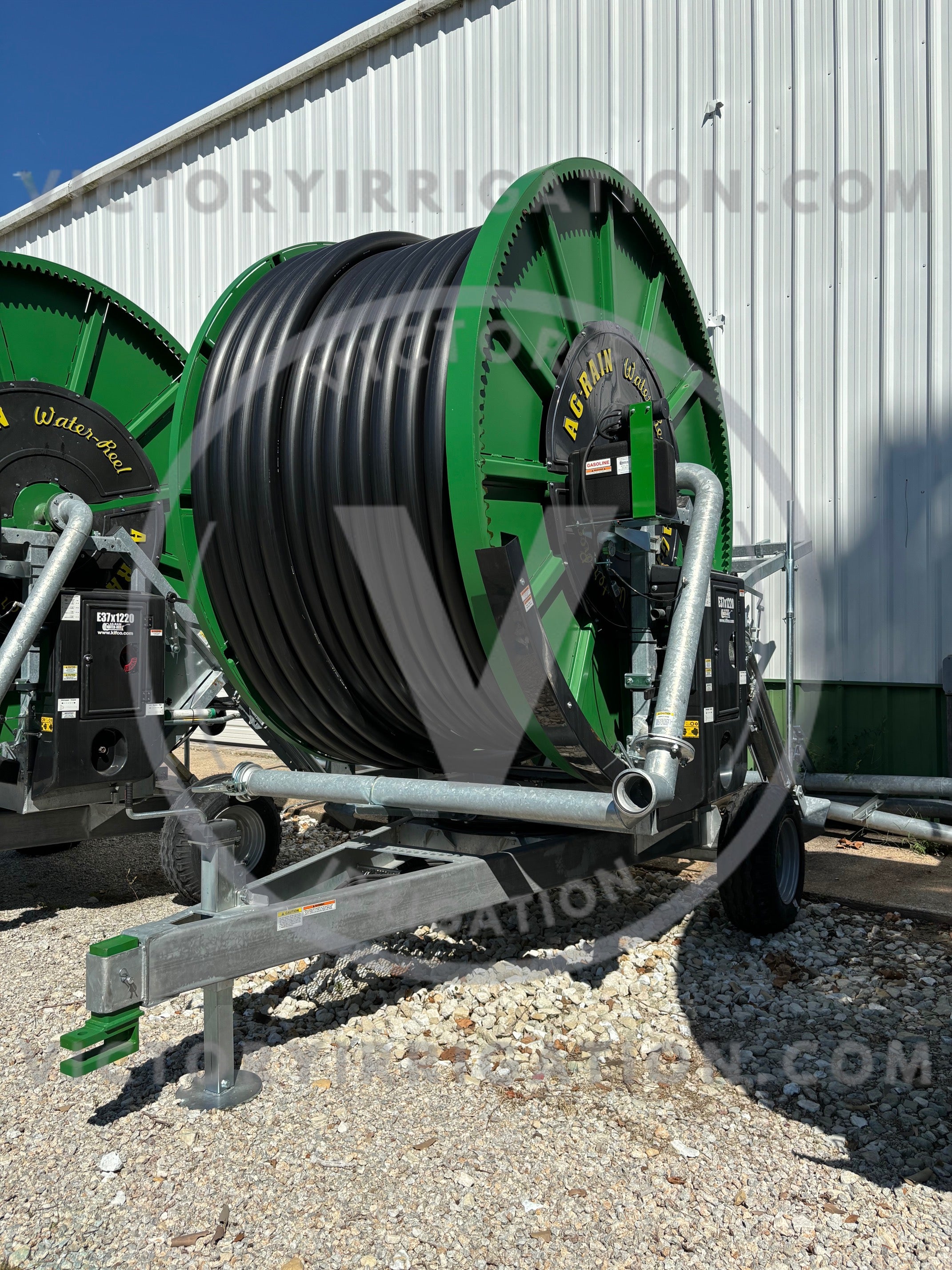

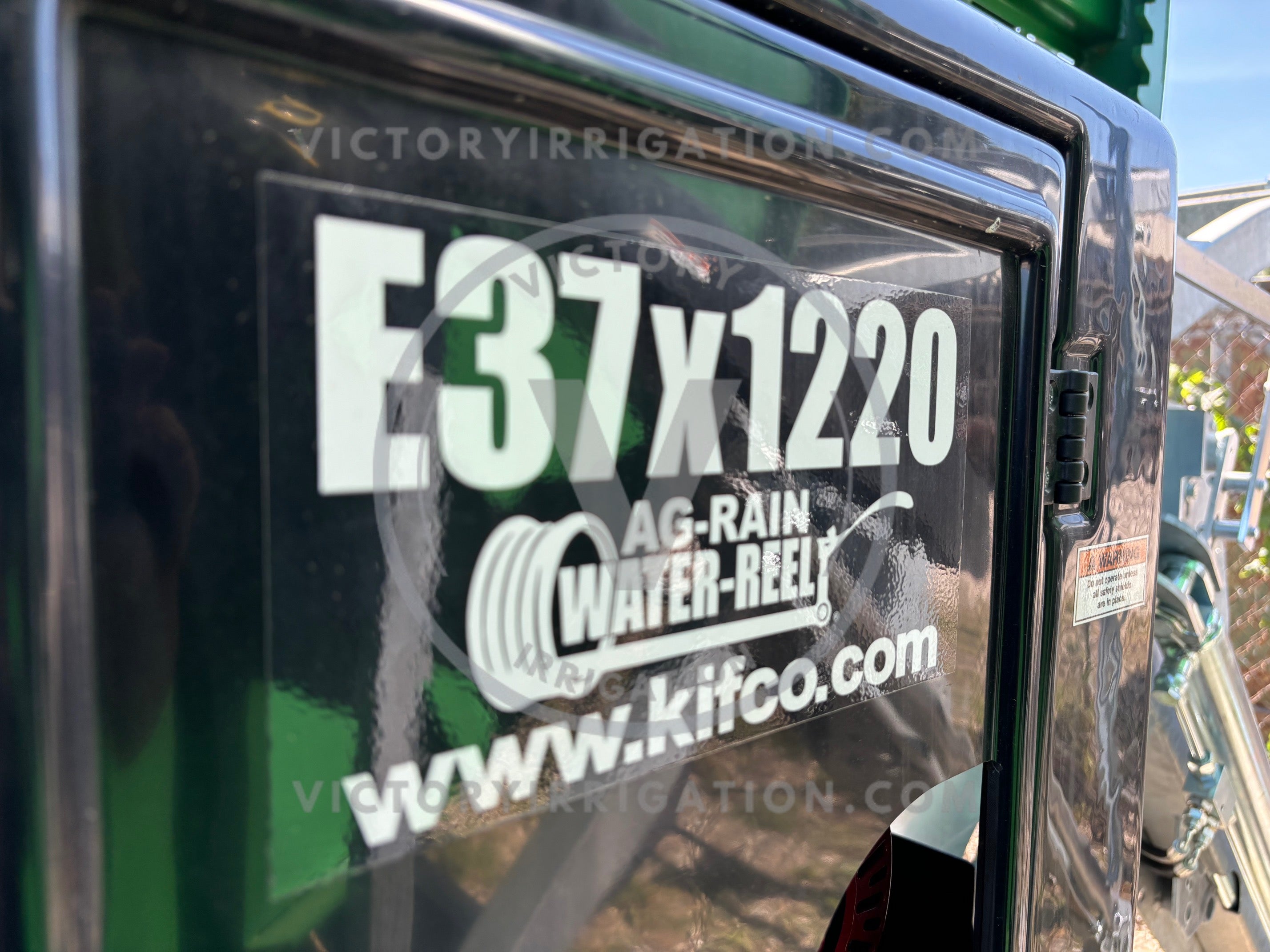

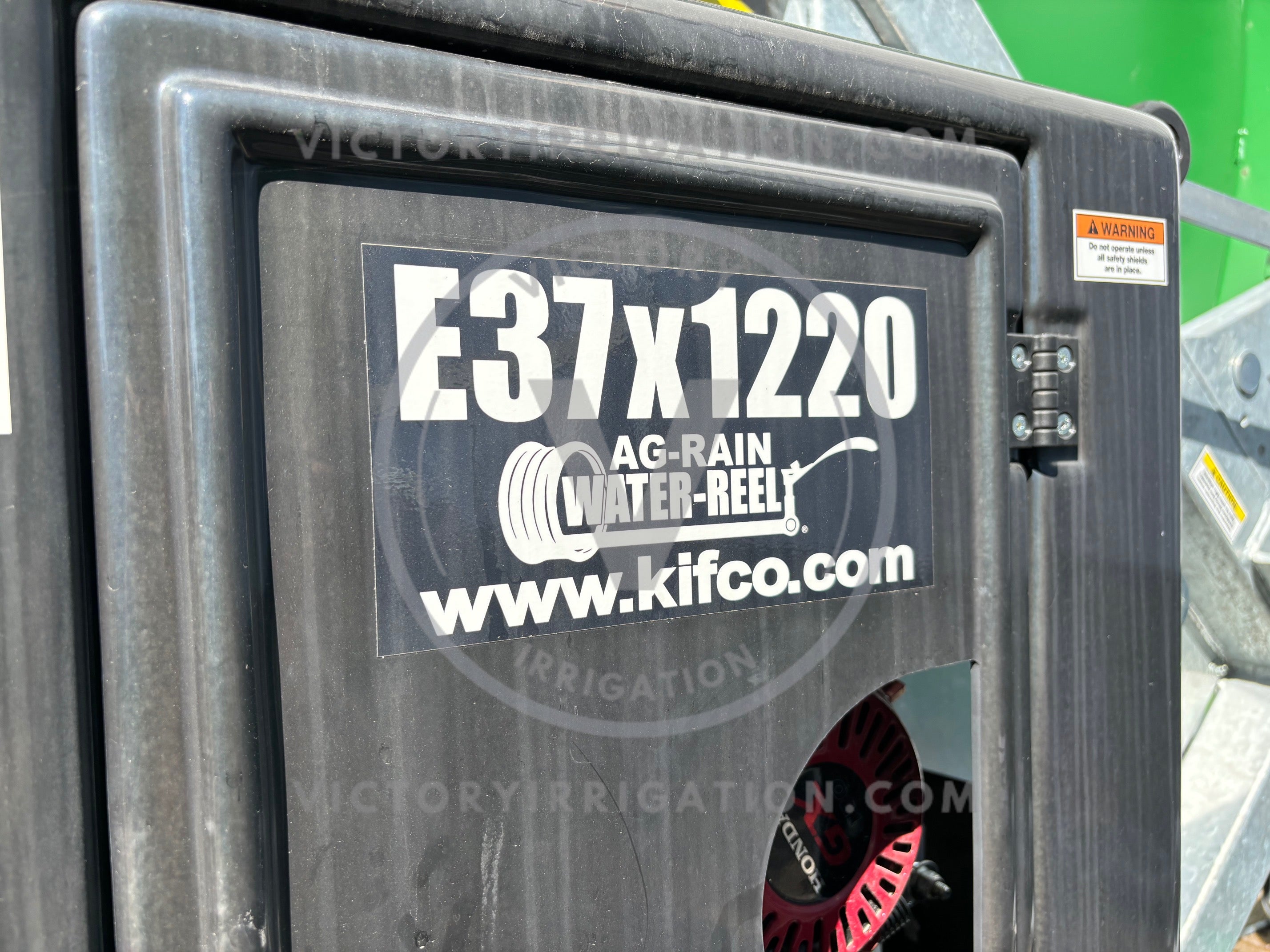

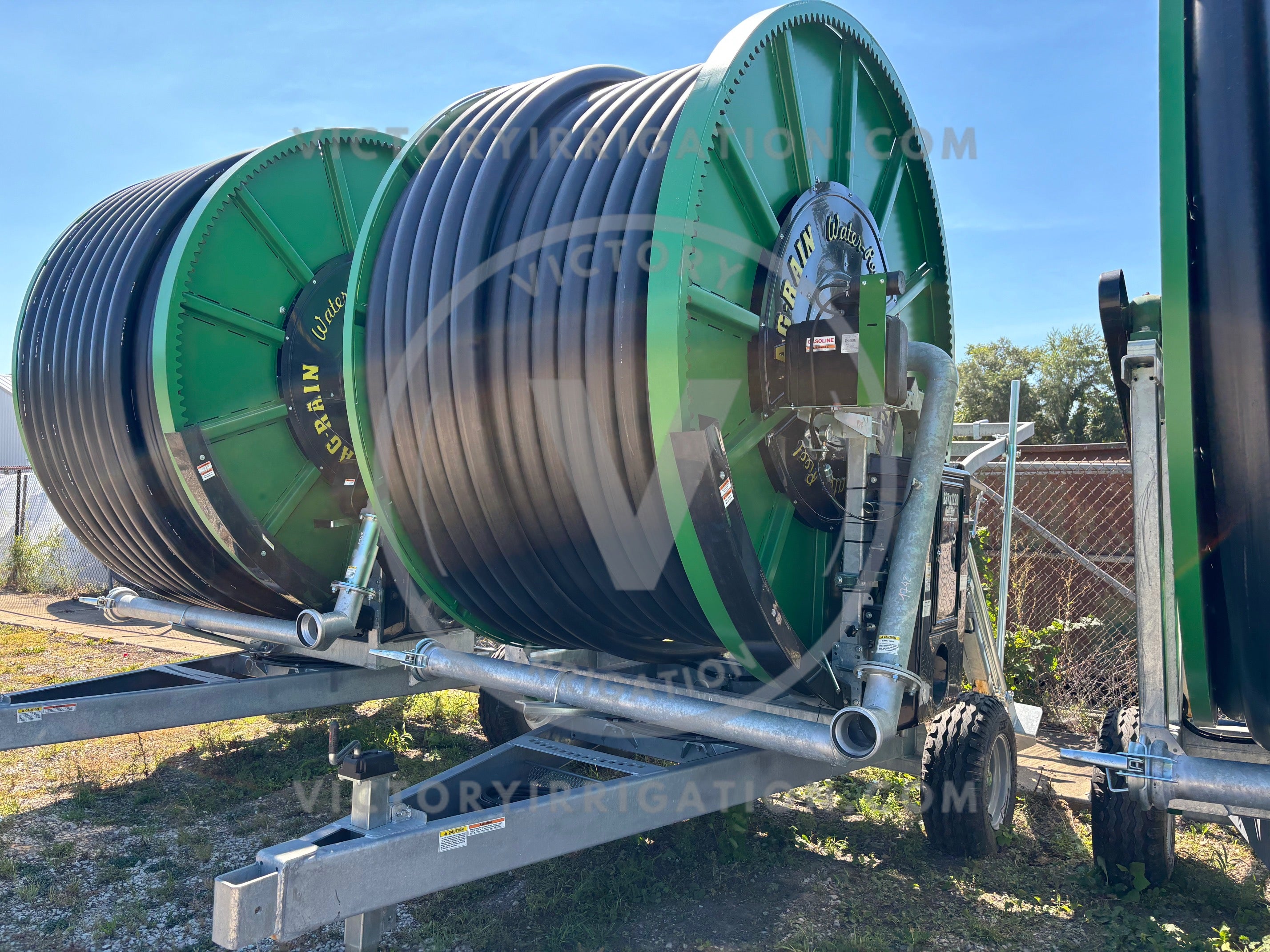

Kifco Ag-Rain Model E37/1220 Reel

Contact us for Best Price and Further Discounts!

Gas Engine Driven Water-Reel with 3.7 ID x 1220 MDPE Tube.

 Portable, Simple, Reliable irrigation, waste water and slurry waste disposal or dust     suppression.

 The UV resistant MDPE Tube is extremely durable and carries a 5 year pro-rated   warranty against manufacturing defects.

 Rugged construction proven by over 40 years of production and over 35,000 Kifco   Water-Reels sold.

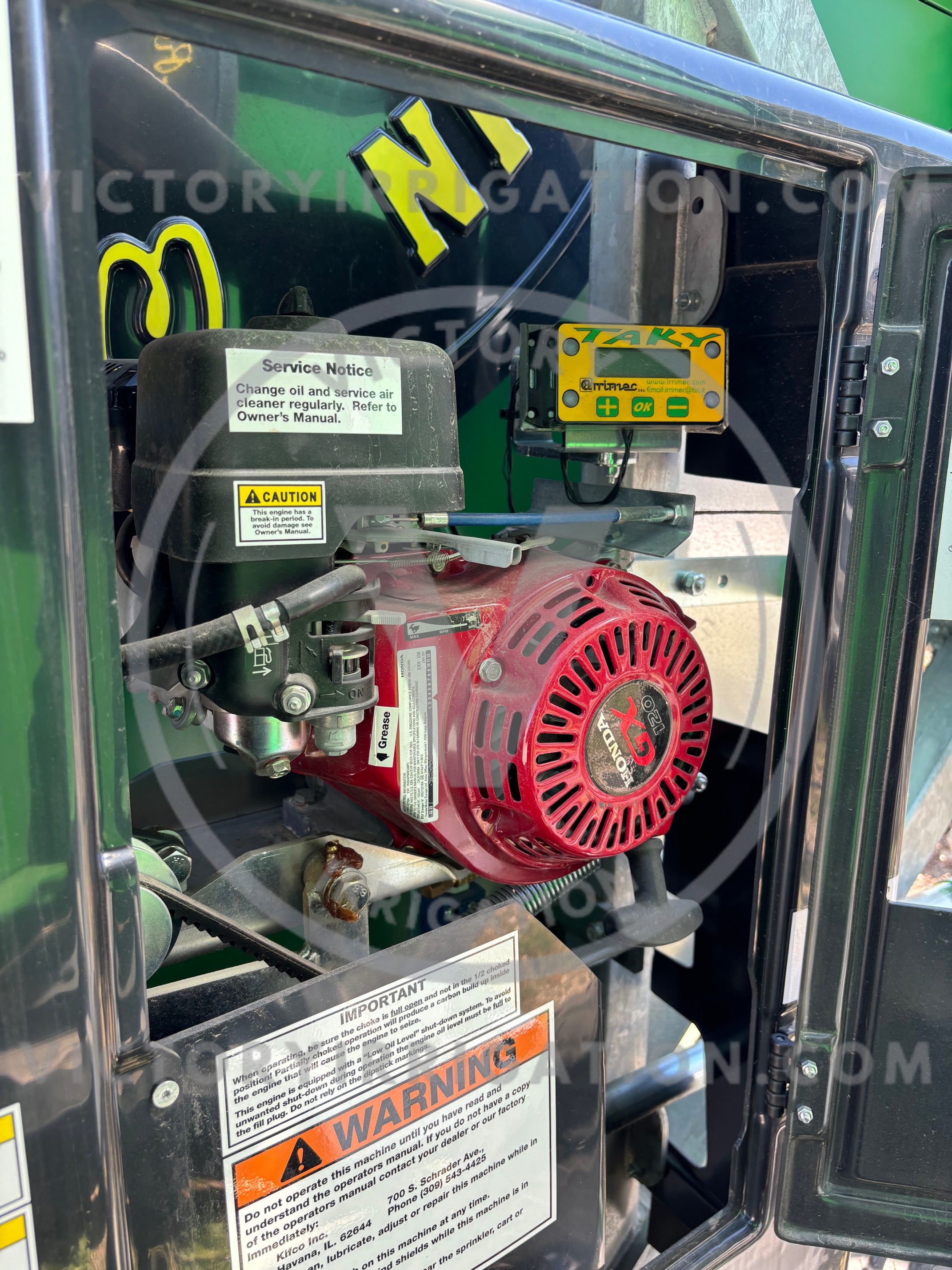

 Efficient 4Hp gas powered engine for high travel speeds, waste water applications and   low water pressure.

 Six gallon fuel cell.

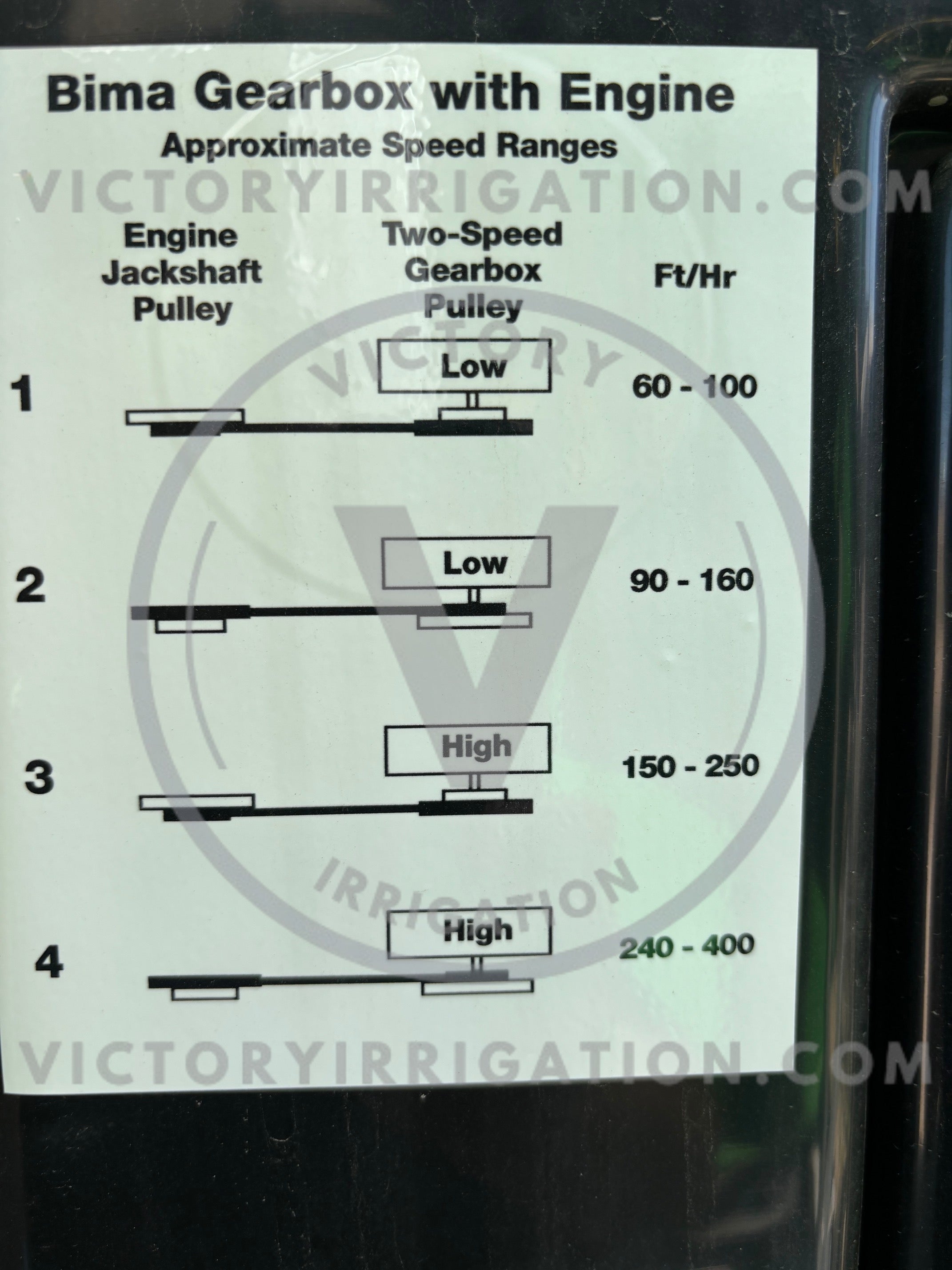

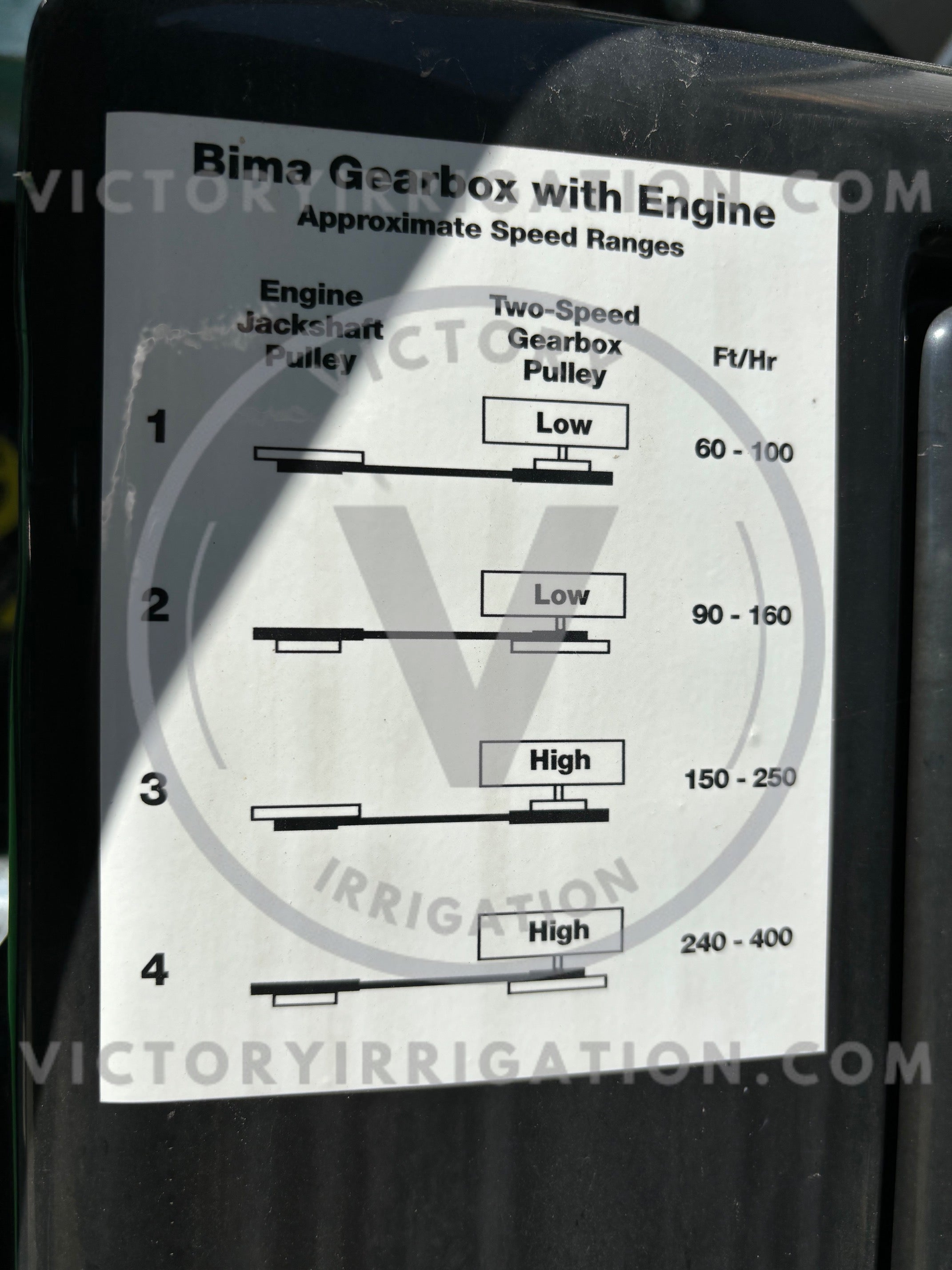

 A two speed gearbox and three pulley settings provide six speed operation.

 Taky (Electronic Tachometer) which measures retraction speed, length of run, tube   remaining and time to end of run.

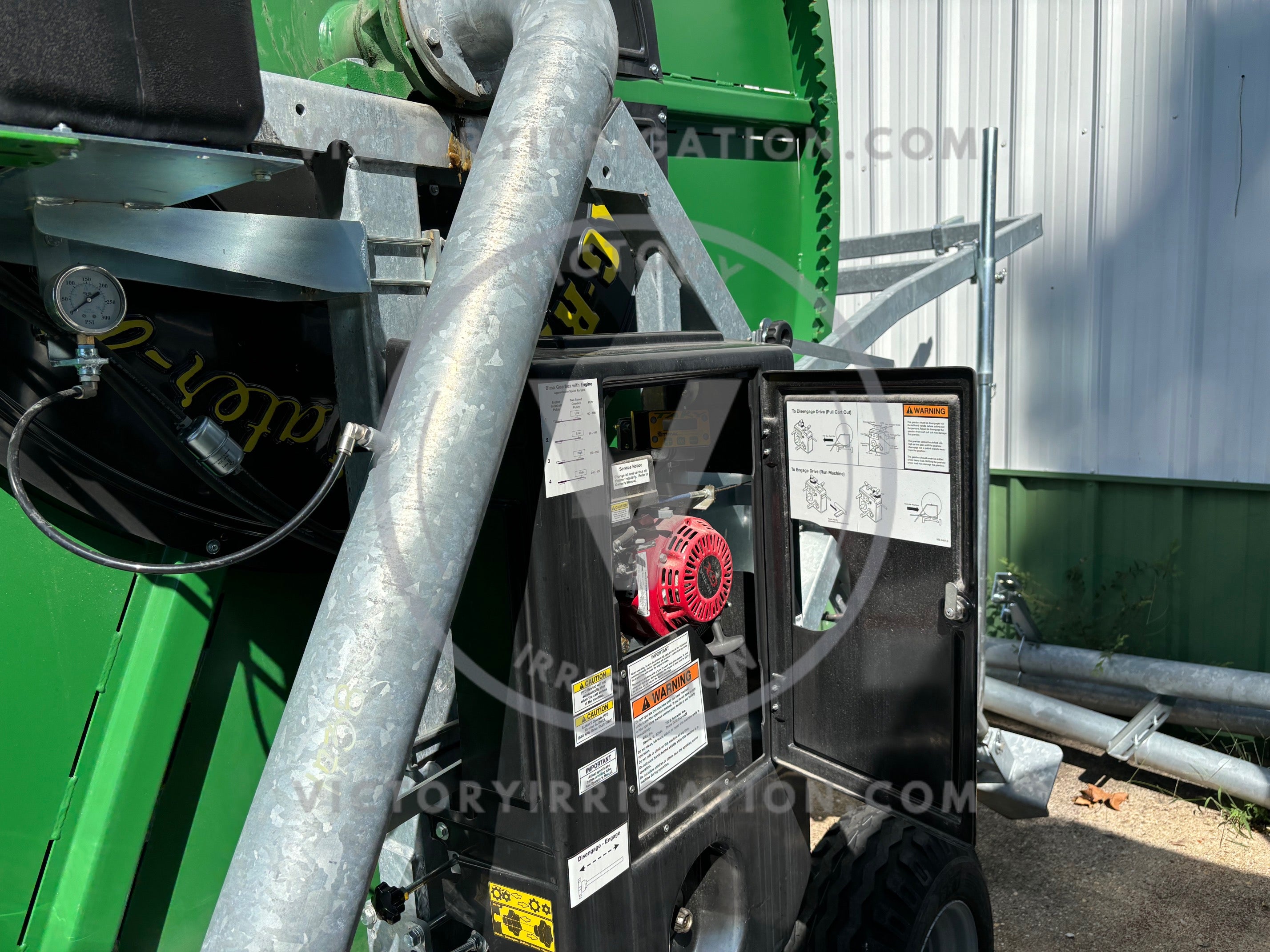

 Liquid filled inlet pressure gauge.

 30  x 4  supply hose with 4 male ring lock supply end.

 Tube mis-wrap safety shutoff.

 Automatic shutoff of drive mechanism.

 Adjustable width guncart which allows for offset gun operation and added width for   stability.

 Heavy duty hand crank stabilizer legs.

 Drawbar hitch for easy towing.

 Single axle heavy duty galvanized chassis.

 Adjustable width axle on chassis.

 Hand operated jack.

 Ball bearing turntable.

 Chain operated levelwind system.

 Speed compensation for consistent retraction speeds for entire length of run

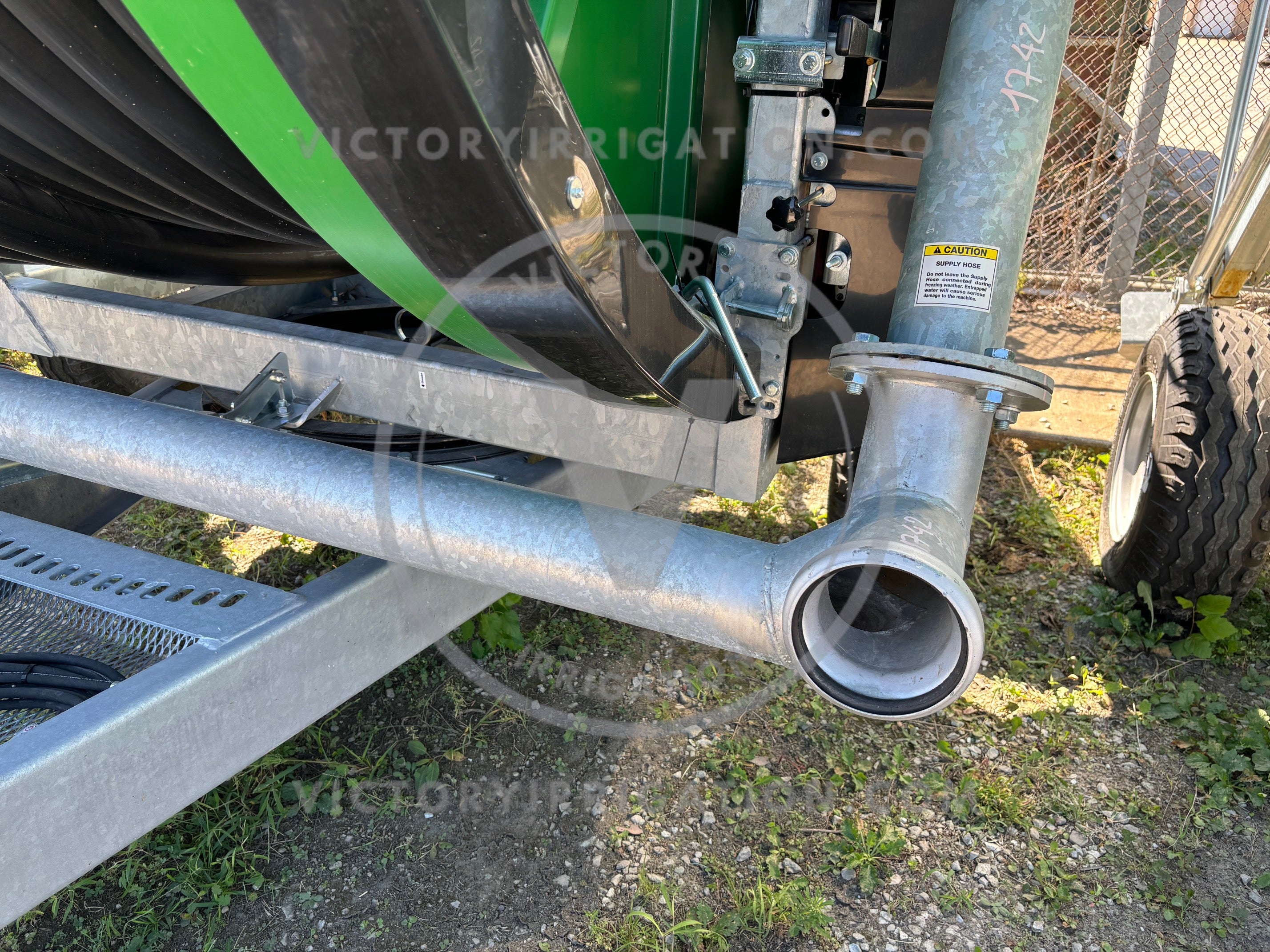

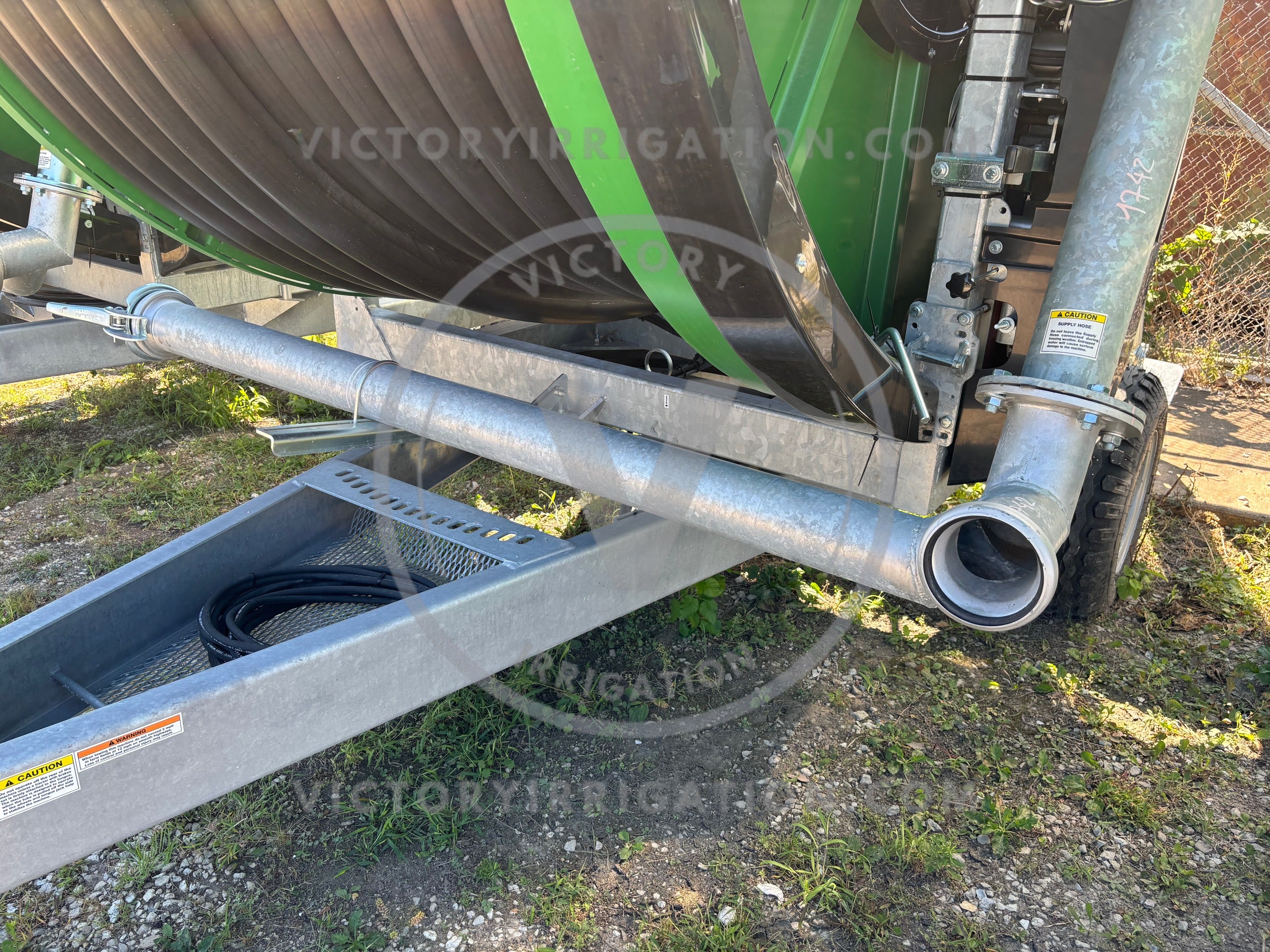

 Cross-Over Pipe allowing for water inlet on both sides of the reel.

Specifications

• Tube Inner Diameter/Length: 3.7" x 1220'
• Irrigated Width: 210' - 285'
• Irrigated Length: 1325' - 1362'
• Irrigated Area Per Run (Acres): 6.4 - 8.9
• Drive System: Turbine or Engine (Learn More)
• GPM Range: 205 - 415
• Inlet PSI Range: 79 - 151 (Turbine) / 69 - 141 (Engine)
• Hours Per Full Run: 4.1 - 41 (Turbine) / 3.1 - 20.3 (Engine)
• Chassis Size: ST6

View E37x1220 Spec Sheet

Performance Charts
