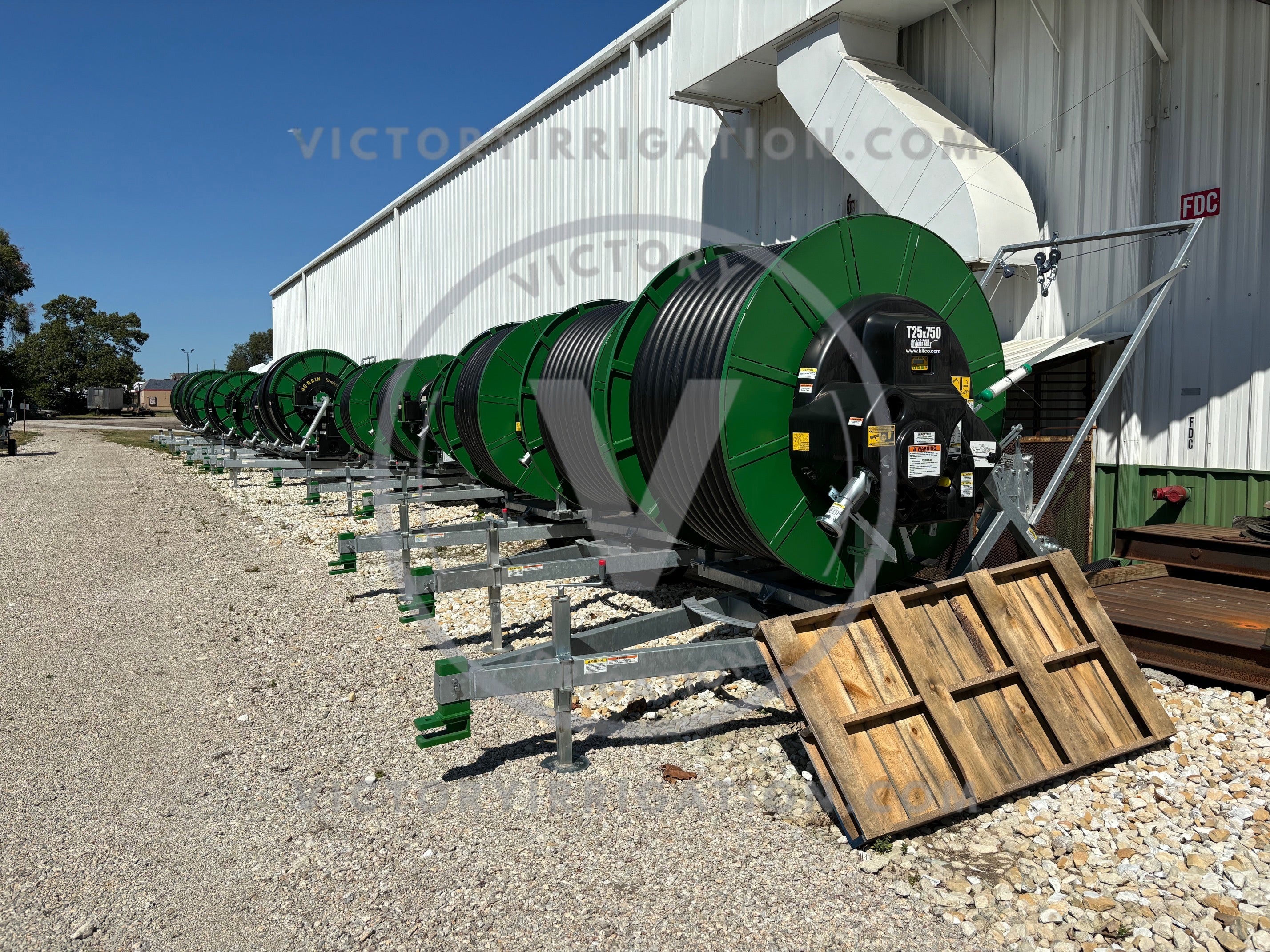

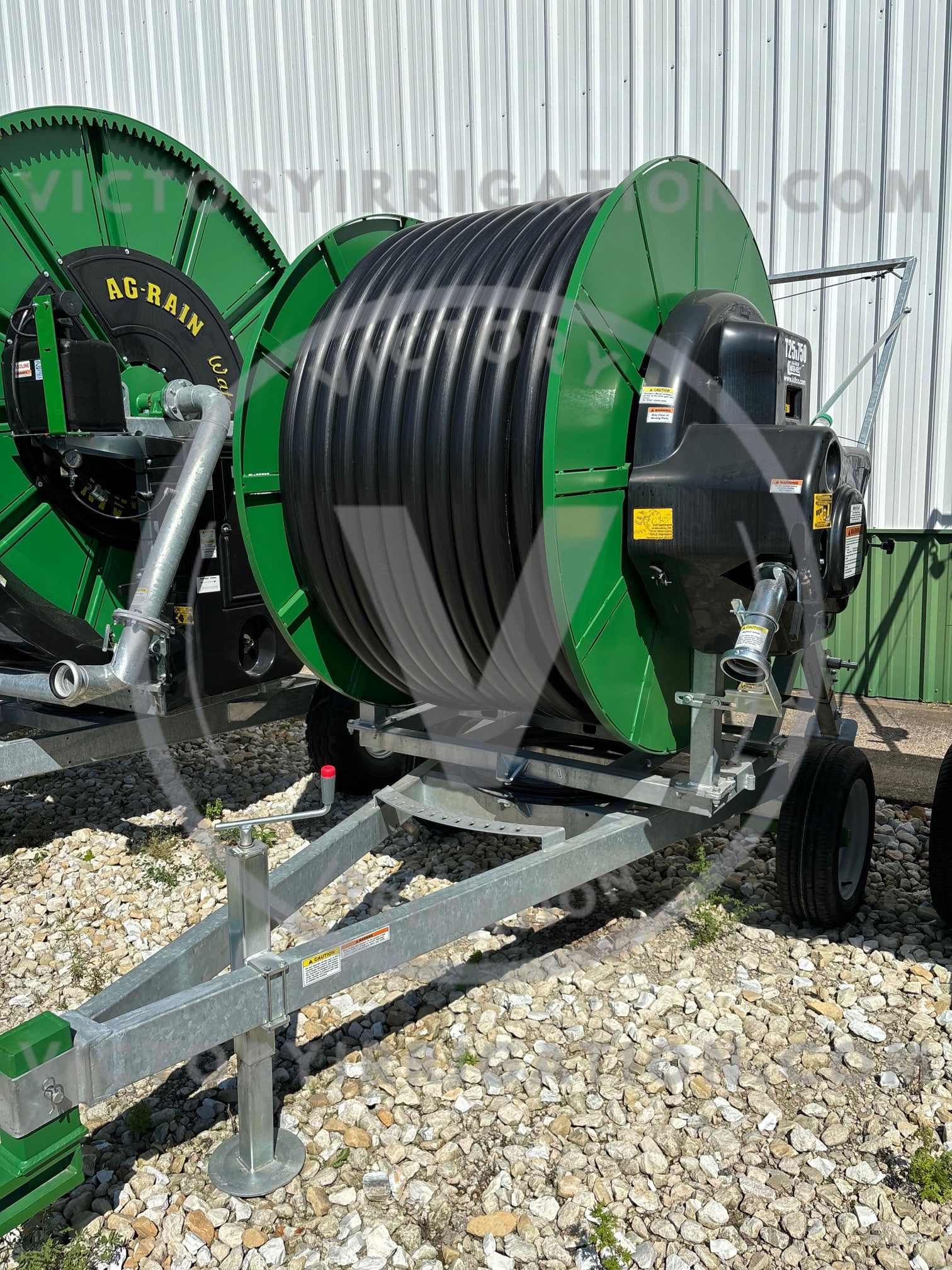

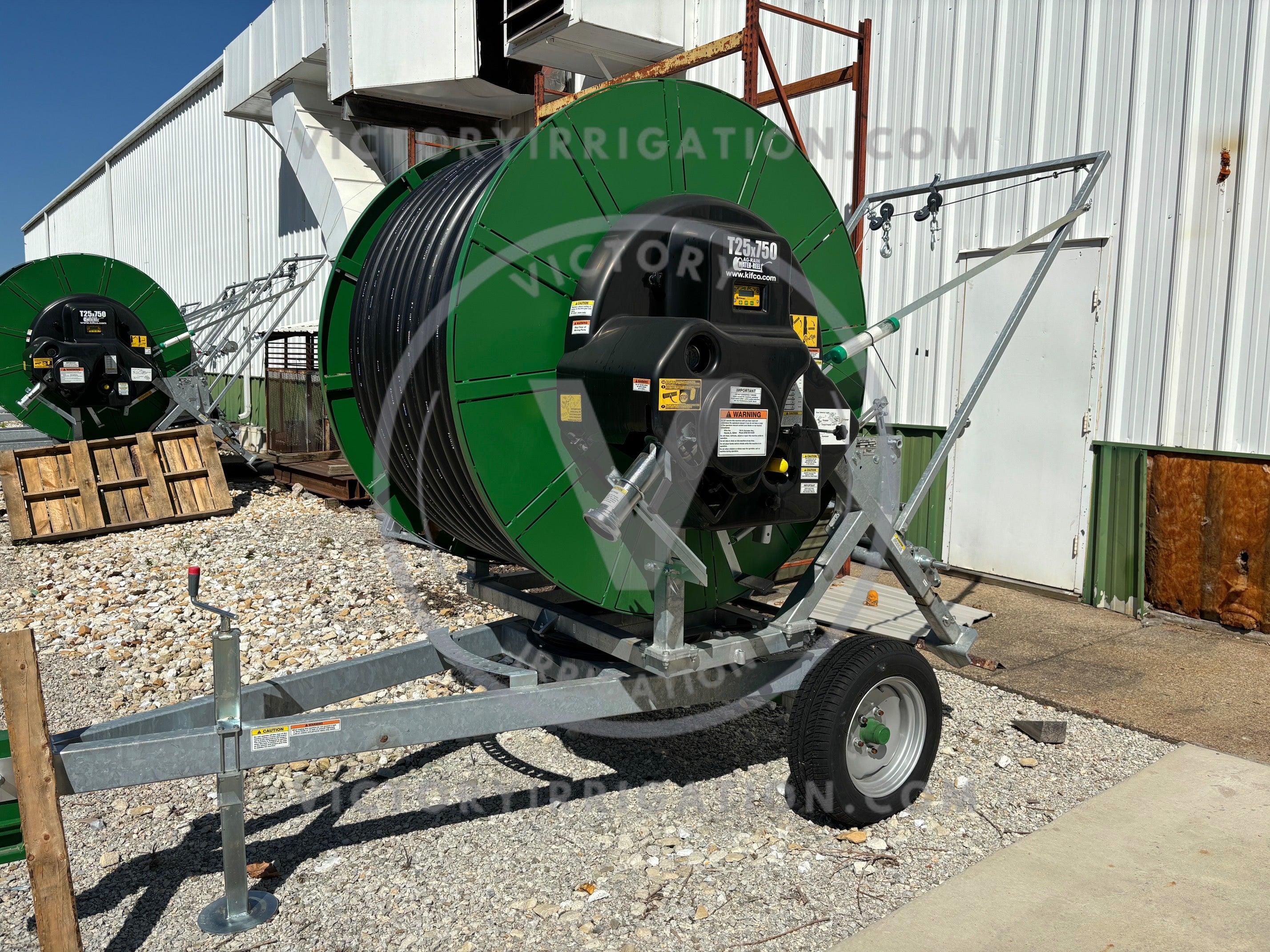

Kifco Ag-Rain Model T25/750 Reel

Turbine Driven Water-Reel with 2.5 ID x 750 MDPE Tube.

Portable, Simple, Reliable irrigation for pastures, cash crops, reclamation, mining and construction sites, and large sports complexes.

UV resistant 2.5 inner diameter medium density polyethylene tube limits pressure loss providing exceptional performance at the sprinkler.

Rugged construction proven by over 40 years of production and over 35,000 Kifco Water-Reels sold.

Extremely efficient radial turbine provides retraction speed control.

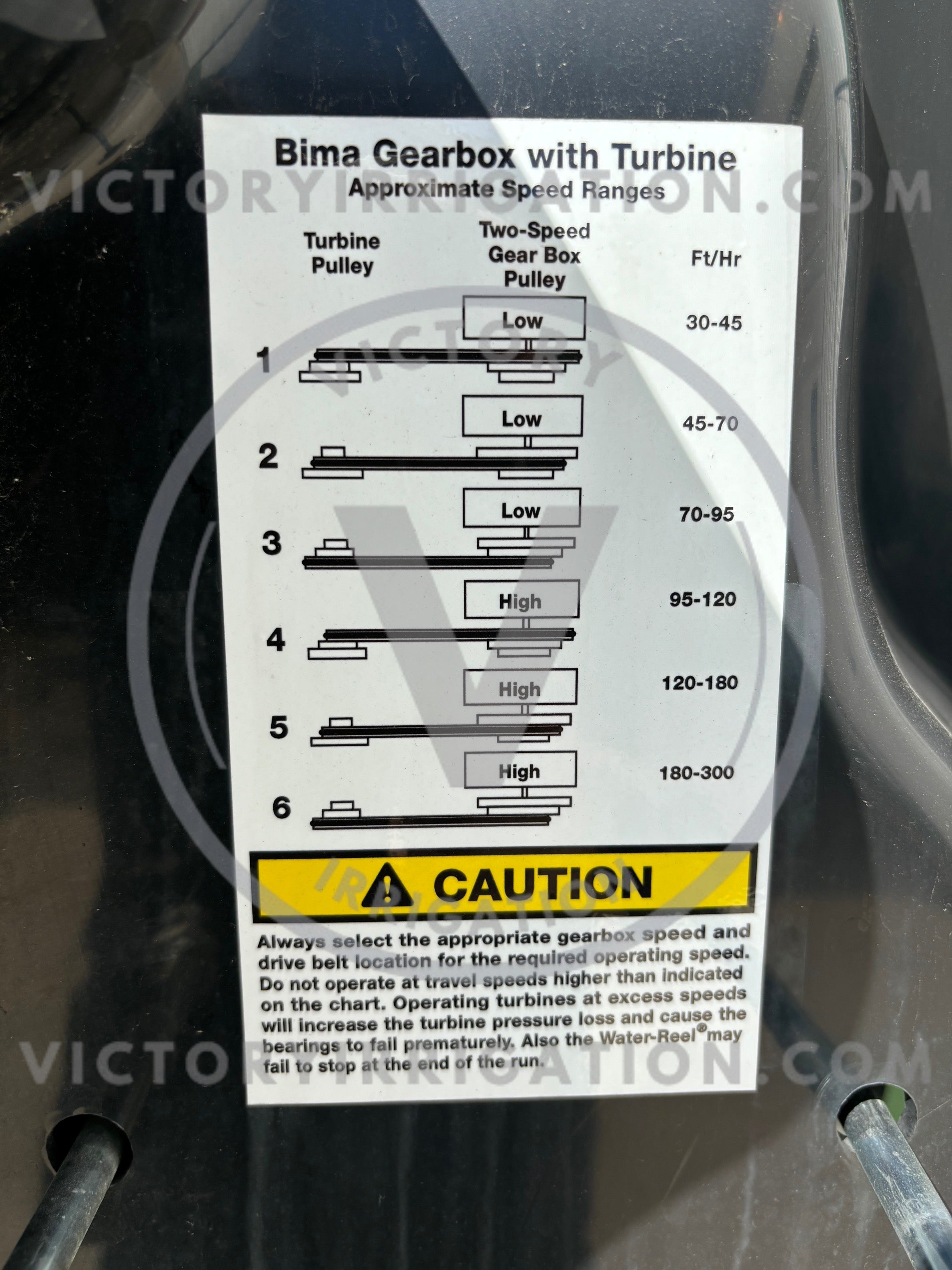

A two speed gearbox and three pulley settings provide six speed operation.

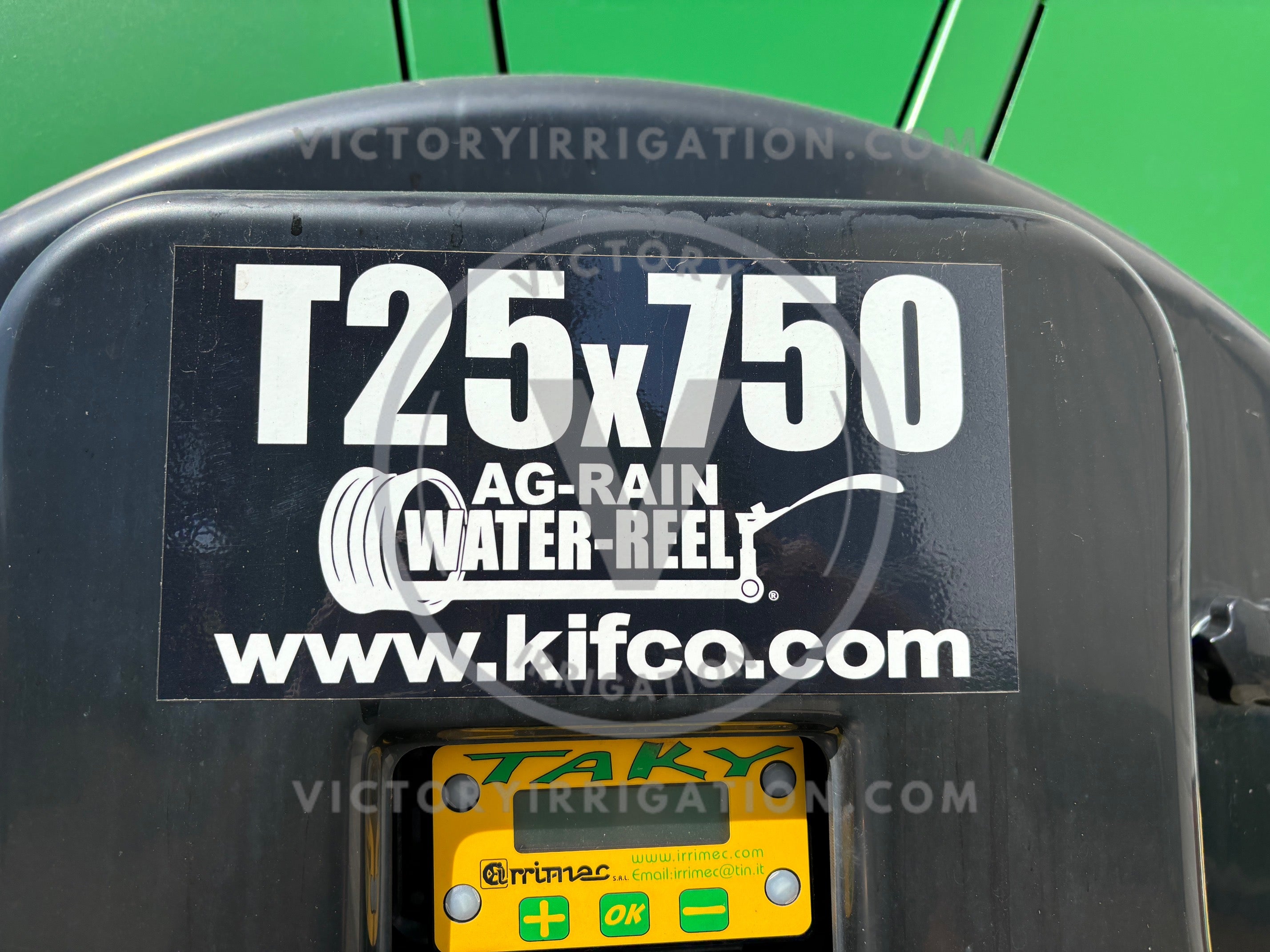

Taky (Electronic Tachometer) which measures retraction speed, length of run, tube remaining and time to end of run.

Liquid filled inlet pressure gauge.

30 x 4 supply hose with 4 male ring lock supply end.

Tube mis-wrap safety shutoff.

Automatic shutoff of drive mechanism.

Chain operated levelwind system.

Speed compensation for consistent retraction speeds for entire length of run.

Adjustable width guncart which allows for offset gun operation and added width for stability.

Hand crank operated guncart lift.

Heavy duty hand crank stabilizer legs.

Drawbar hitch for easy towing.

Single axle galvanized heavy duty chassis.

Adjustable width axle on chassis.

Drawbar hitch for easy towing.

Hand operated hydraulic jack.

Ball bearing turntable.

Cross-Over Pipe allowing for water inlet on both sides of the reel.

Specifications

• Tube Inner Diameter/Length: 2.5" x 750'
• Irrigated Width: 154' - 207'
• Irrigated Length: 831' - 857'
• Irrigated Area Per Run (Acres): 2.9 - 4.1
• Drive Systems: Turbine (Learn More) For Engine Drive Option please consult factory.
• GPM Range: 74 - 177
• Inlet PSI Range: 72 - 141
• Hours Per Full Run: 1.9 - 18.9
• Chassis Size: ST2

View T25x750 Spec Sheet

Performance Charts
