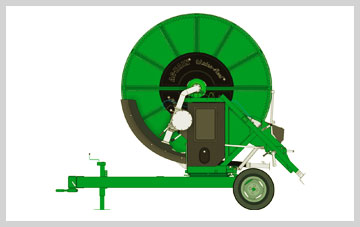

Kifco Ag-Rain Model T30/1200 Reel

Turbine Driven Water-Reel  with 3.0 ID x 1200  MDPE Tube.

Portable, Simple, Reliable irrigation for pastures, cash crops, reclamation, mining and  construction sites, and large sports complexes.

UV resistant 3.3  inner diameter medium density polyethylene tube limits pressure loss  providing exceptional performance at the sprinkler.

Rugged construction proven by over 40 years of production and over 35,000 Kifco  Water-Reels  sold.

Extremely efficient radial turbine provides retraction speed control.

A two speed gearbox and three pulley settings provide six speed operation.

Taky (Electronic Tachometer) which measures retraction speed, length of run, tube  remaining and time to end of run.

Liquid filled inlet pressure gauge.

30  x 4 supply hose with 4 male ring lock supply end.

Tube mis-wrap safety shutoff.

Automatic shutoff of drive mechanism.

Chain operated levelwind system.

Speed compensation for consistent retraction speeds for entire length of run.

Adjustable width guncart which allows for offset gun operation and added width for  stability.

Hand crank operated guncart lift.

Heavy duty hand crank stabilizer legs.

Drawbar hitch for easy towing.

Single axle galvanized heavy duty chassis.

Adjustable width axle on chassis.

Drawbar hitch for easy towing.

Hand operated hydraulic jack.

Ball bearing turntable.

Cross-Over Pipe allowing for water inlet on both sides of the reel.

Specifications

• Tube Inner Diameter/Length: 3.0" x 1200'
• Irrigated Width: 186' - 232'
• Irrigated Length: 1293' - 1316'
• Irrigated Area Per Run (Acres): 5.5 - 7
• Drive System: Turbine or Engine (Learn More)
• GPM Range: 125 - 240
• Hours Per Full Run: 4.0 - 40 (Turbine) / 3.0 - 20 (Engine)
• Inlet PSI Range: 81 - 150 (Turbine) / 71 - 140 (Engine)
• Chassis Size: ST5

View T30x1200 Spec Sheet

Performance Charts
