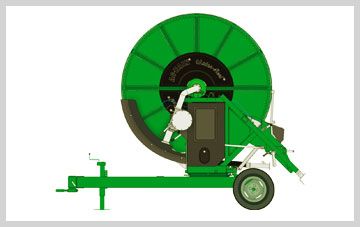

Kifco Ag-Rain Model T37/1220 Reel

Contact us for Best Price and Further Discounts!

Turbine Driven 3.7 ID x 1220 Water-Reel with MDPE Tube.

Portable, Simple, Reliable irrigation for pastures, cash crops, reclamation, mining and    construction sites, and large sports complexes.

The UV resistant MDPE Tube is extremely durable and carries a 5 year pro-rated  warranty against manufacturing defects.

Rugged construction proven by over 40 years of production and over 35,000 Kifco Water-Reels  sold.

Extremely efficient radial turbine provides retraction
speed control.

A two speed gearbox and three pulley settings provide six
speed operation.

Taky (Electronic Tachometer) which measures retraction speed, length of run, tube remaining and time to end of run.

Liquid filled inlet pressure gauge.

30  x 4  supply hose with 4  male ring lock supply end.

Tube mis-wrap safety shutoff.

Automatic shutoff of drive mechanism.

Chain operated levelwind system.

Speed compensation for consistent retraction speeds for entire length of run
Adjustable width guncart which allows for offset gun operation and added width for      stability.

Hydraulic operated guncart lift.

Heavy duty hydraulic stabilizer legs.

Drawbar hitch for easy towing.

Single axle heavy duty galvanized chassis.

Adjustable width axle on chassis.

Hand operated hydraulic jack.

Ball bearing turntable.

Specifications

• Tube Inner Diameter/Length: 3.7" x 1220'
• Irrigated Width: 210' - 285'
• Irrigated Length: 1325' - 1362'
• Irrigated Area Per Run (Acres): 6.4 - 8.9
• Drive System: Turbine or Engine (Learn More)
• GPM Range: 205 - 415
• Inlet PSI Range: 79 - 151 (Turbine) / 69 - 141 (Engine)
• Hours Per Full Run: 4.1 - 41 (Turbine) / 3.1 - 20.3 (Engine)
• Chassis Size: ST6

View T37x1220 Spec Sheet View T37/1220 Operator Manual View T37/1220 Parts Manual

Performance Charts
