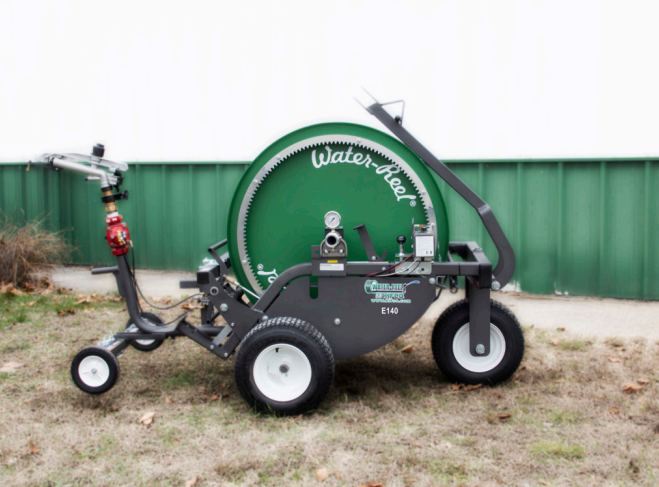

Kifco Model E140 Reel

Contact us for Best Price and Further Discounts!

DC Electric Driven Water-Reel with 1.4 ID x 350 MDPE Tube (Battery Not Included).

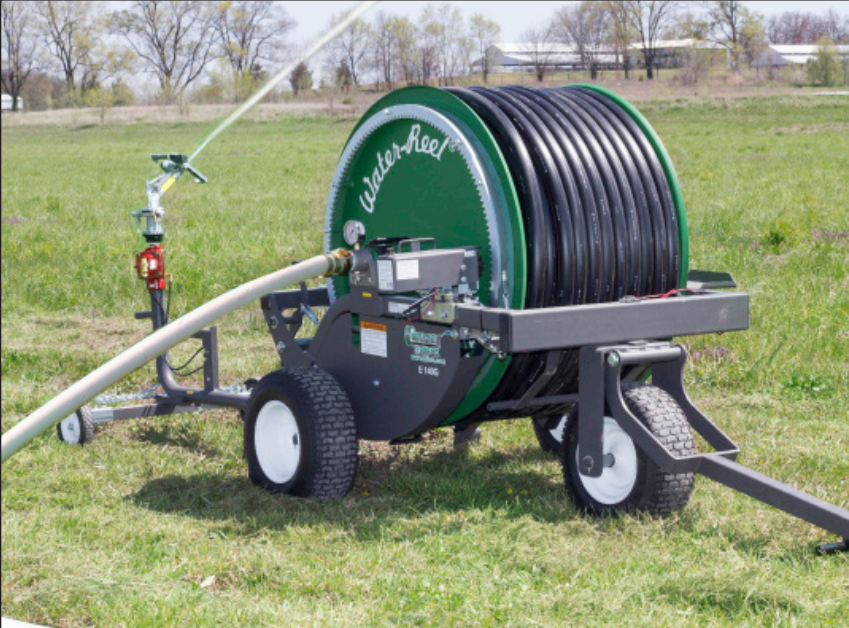

Simple, reliable, portable irrigation for pastures, paddocks, riding arenas, sports fields, vegetables and residential settings.

Automatic shutoff allows for unattended operation.

Mechanical levelwind system with miswrap safety for uniform, reliable tube rewinding.

The Kifco Model E140 uses a DC electric retraction motor and can operate as low as 25 psi and 13 gpm for up to 40 hours on a full charge (Battery required).

Sprinkler selector valve easily allows for automatic sprinkler shutoff at the end of the run or continued operation.

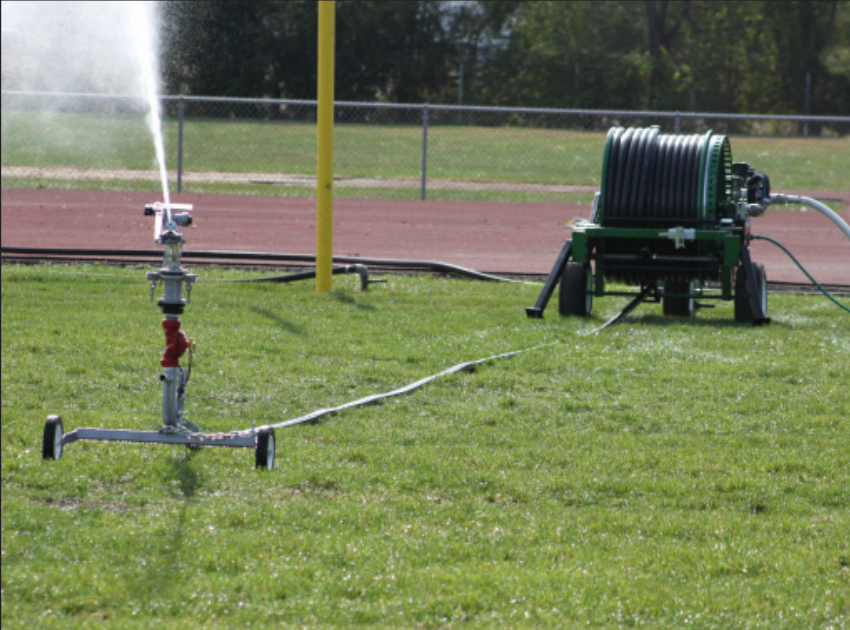

Excellent for polo, football and soccer field irrigation.

Specifications

• Tube Inner Diameter/Length: 1.4" x 350'
• Irrigation Width: 82 - 189'
• Irrigated Length: 391 - 444'
• Irrigated Area Per Run (Acres): 0.4 - 2.0
• Drive System: Electric Motor (Learn More)
• Recommended Battery: Required battery is not included. 12 Volt Deep Cycle Battery Recommended.
• GPM Range: 13 - 80
• Inlet PSI Range: 25 - 145
• Hours Per Full Run: 2.1 - 11.7
• Sprinkler Options: Sime K1, Sime Hidra, Nelson SR75, or Komet Twinmax
• Optional Solar Panel: Kifco Model E140 can be equipped with a highly efficient solar panel which eliminates the need for an electrical charge.

View E140 Spec Sheet View E140 Operator Manual View B140 Parts Manual

Performance Charts
